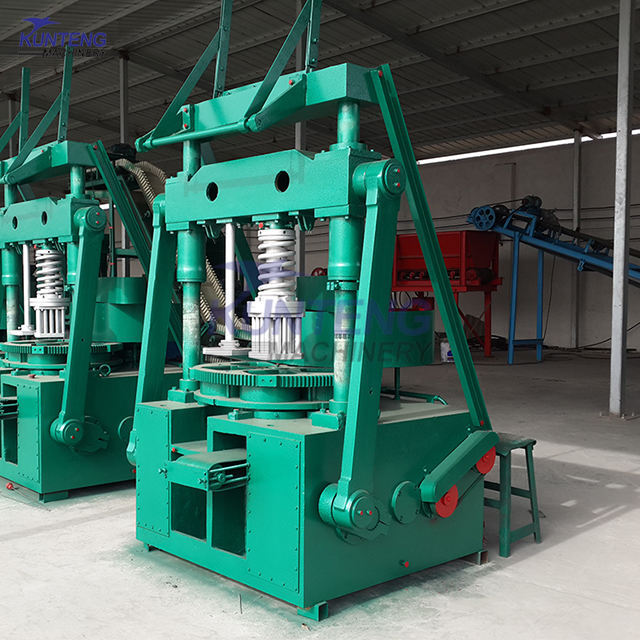

Charcoal Briquette Production Line

Price 890026.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Charcoal Briquette Production Line Specification

Product Type
Coal briquetting machine

General Use
Industrial

Material
Charcoal

Production Capacity
1-3 T/hr

Product Shape
Customized

Weight (kg)
2000 Kilograms (kg)

Type
Briquette Machines

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Voltage
220 Volt (v)

Motor
AC Motor

Briquette Size
customized

Dimension (L*W*H)
3200*1000*2600 Millimeter (mm)

Feature
Low Consumption

Color
Other

Warranty
5 Years

Charcoal Briquette Production Line Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Paypal, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
10 Units Per Month

Delivery Time
15 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
container

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Western Europe, Eastern Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
CE,ISO,CCC

Charcoal Briquette Production Line About

PRODUCT OVERVIEW

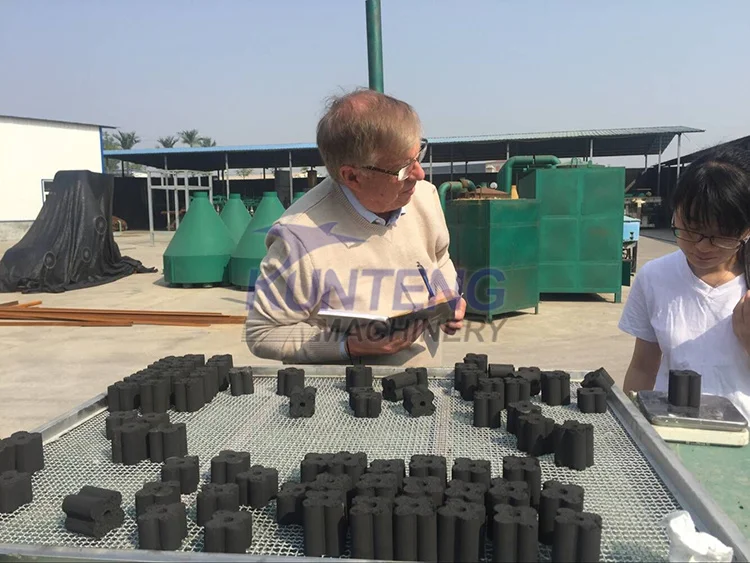

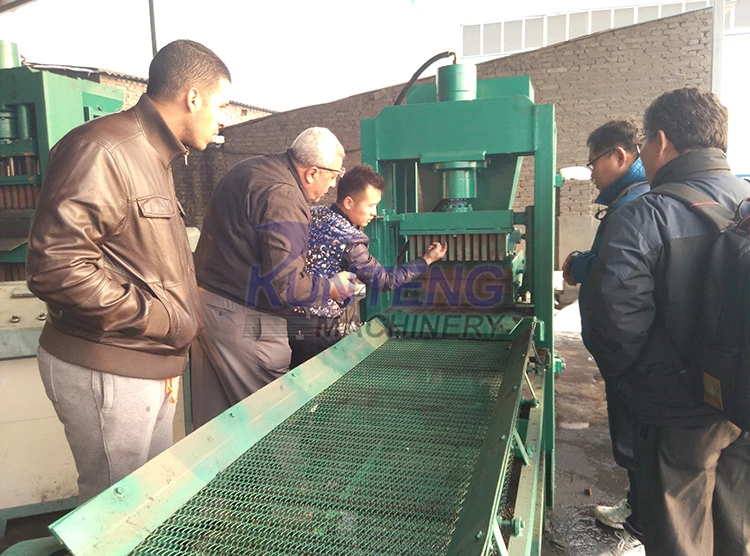

CUSTOMER PHOTOS

Peanut shell charcoal briquetting machine for Iraqi customers

Peanut shell charcoal briquetting machine production line for Australian customers

DETAILS DISPLAY

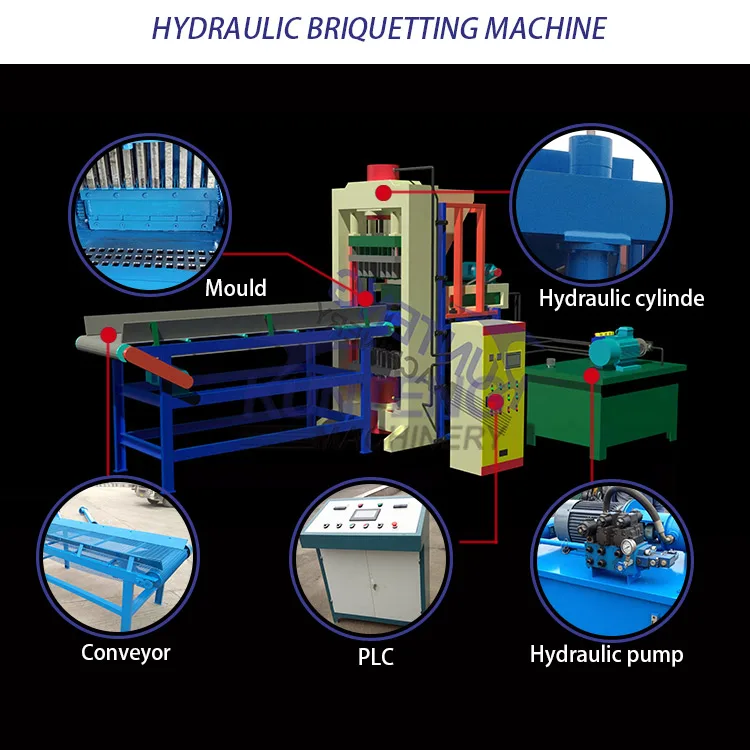

FLAMMABLE CARBON BRIQUETTING MACHINE

Flammable carbon briquetting machines, ignition carbon briquetting machine and smokeless carbon briquetting machine have the electrical system of power mechanism and adopts button centralized control, which can realize three working modes: adjustment, manual and semi-automatic. The working pressure, pressing speed and slider stroke of the machine can be adjusted according to the process needs, and can complete three process modes: ejection process, without ejection process and stretching process. Each process can be selected from two process actions: constant pressure and constant range. The constant pressure forming process has pressure holding, time delay and automatic return after pressing.

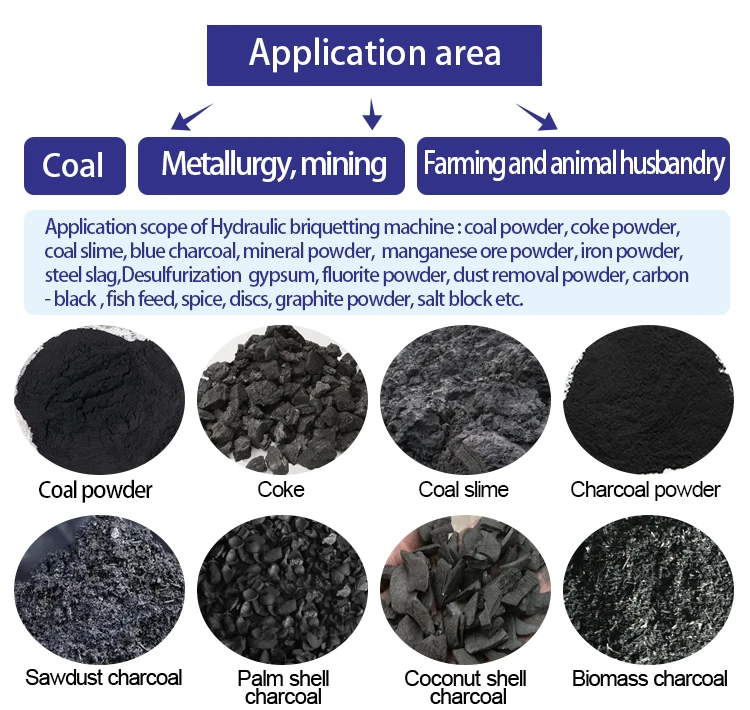

Flammable carbon briquetting machines, ignition carbon briquetting machine and smokeless carbon briquetting machine can press a variety of powder materials like charcoal powder, coal powder, coke powder, wood powder and other mineral powder into round, square, hexagon or other shape tablets with high density. Especially, it is widely used in making charcoal briquettes field for shisha charcoal , BBQ charcoal.

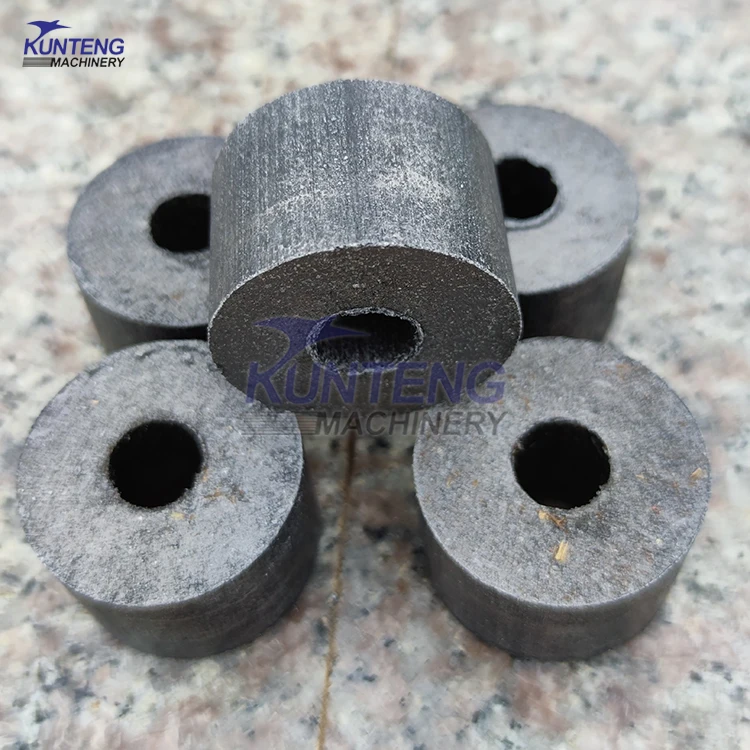

Flammable carbon briquetting machines, ignition carbon briquetting machine and smokeless carbon briquetting machine can replace supporting molds to produce different shapes of blocks, including honeycomb, square, round, triangle, holes or no holes and so on. We can also design and manufacture special moulds according to customer requirements. Combustion process is tasteless, smokeless, high heat, low noise, less dust.

Combustion process is tasteless, smokeless, high heat, low noise, less dust.

This series of flammable carbon briquetting machines, ignition carbon briquetting machine and smokeless carbon briquetting machine are mainly used for drawing, blanking, bending, flanging and other processes. It is used for drawing, bending, extrusion, forming and other processes of sheet metal in industries such as automobile, tractor, rolling stock, ship, motor and instrument, as well as power industry and aviation industry. It is also applicable to the tensile work of various high-strength alloy plates.

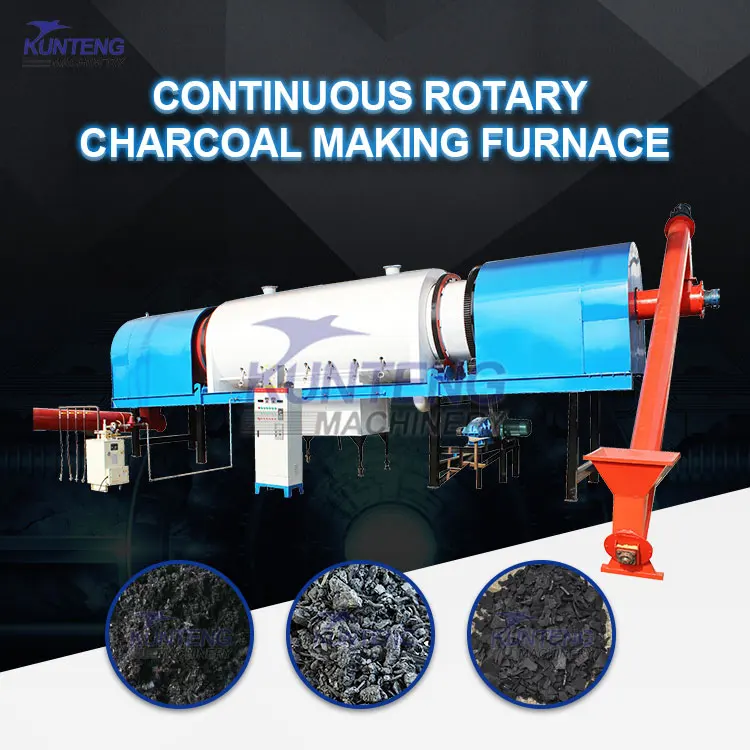

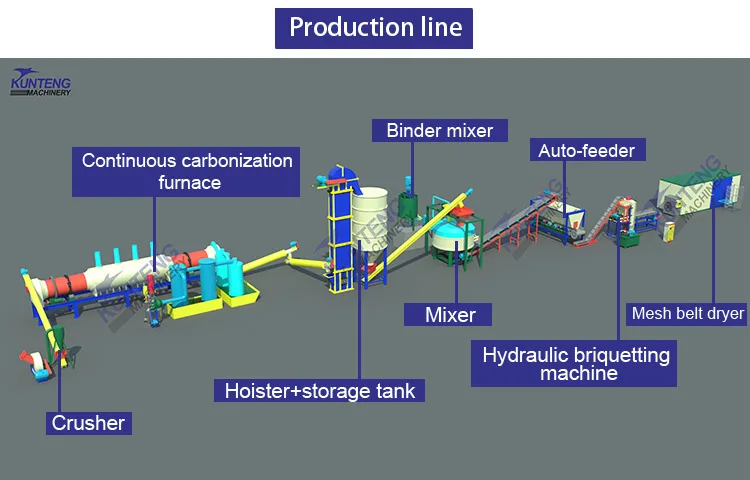

Our team could customize reasonable and efficient production line according to customers' site, raw materials, output and other requirements. Firstly, fruitwood and other biomass are carbonized into carbon by carbonization furnace and enter hoister and storage tank. According to customer's raw material, you can choose continuous carbonization furnace, horizontal charcoal making stove and hoisting carbonization furnace. Secondly, carbon can be crushed into carbon powder by dust-free grinder. Thirdly, carbon powder are stirred by double shaft mixer and mixer. In the end, carbon powder can be be shaped by briquetting machines and enter the dryer by drying. The whole flammable carbon briquetting machines, ignition carbon briquetting machine and smokeless carbon briquetting machine production line are fully automatic.

PRODUCT SPECIFICATIONS

Model	JYP-1(Hydraulic pressure)	JYP-2(hydraulic pressure)
Materials	charcoal powders, coal powders, sawdust, any powders form Materials
Capacity	500-1000kg/h, depends on your materials and size of briquette	400-500kg/h, depends on your materials and size of briquette
Motor	17.5 kw	17.5 kw
Height of briquettes	within 80mm, dimeter as your willing, briquette can has hole	20,25,30 33 35 38 40 mm(round) 20-30 mm(cubic), tablets
Feeding materials	< 1 mm	< 1 mm
Briquettes shape	Hexagonal shape and cylinder shape or as customers request	Round shape and Cubic shape Or as customers request
Pressure	120tons	60tons
Overall size	320012002650mm(includes conveyor)	350020001800mmincludes conveyor)
Weight	3500 KG	1900KG

ADVANTAGES

1. The hydraulic connecting valve has long action and reliable service life.

2. Through the computer optimization structure design, the three beam four column structure is simple, economical and practical.

3. Independent electrical control system, reliable operation, intuitive action and convenient

maintenance.

4. Button centralized control is adopted, with three operation modes: adjustment, manual and semi-automatic.

5. Through the selection of operation panel, two operation processes of constant range and constant pressure can be realized, and it has the function of pressure maintaining.

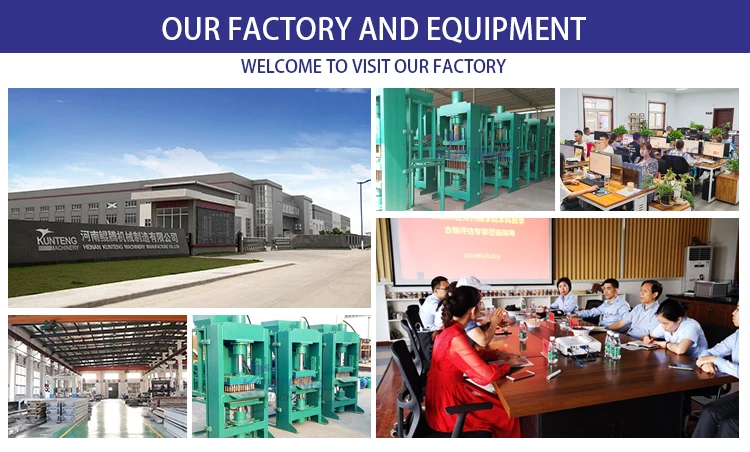

Company Profile

KUNTENG Machinery Co., Ltd. serves the hydraulic press industry and has mature experience in research & development, design, manufacturing and installation. Machinery has cooperated with many manufacturers in China and other countries to provide hydraulic machinery equipment for the production lines of many manufacturers.Machinery pays attention to customer applicability and product research and development, and the level of production skills is perfect. We undertake the design and manufacturing of various types of flammable carbon briquetting machines, ignition carbon briquetting machine and smokeless carbon briquetting machine.

OUR SERVICES

FAQ

Q1. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

Q2. why should you buy from us not from other suppliers?

Our team has mature experience in research & development, design, manufacturing and installation. Every process is strictly controlled in order to provide you the best products.

Q3.How to control the quality of the products?

A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".
