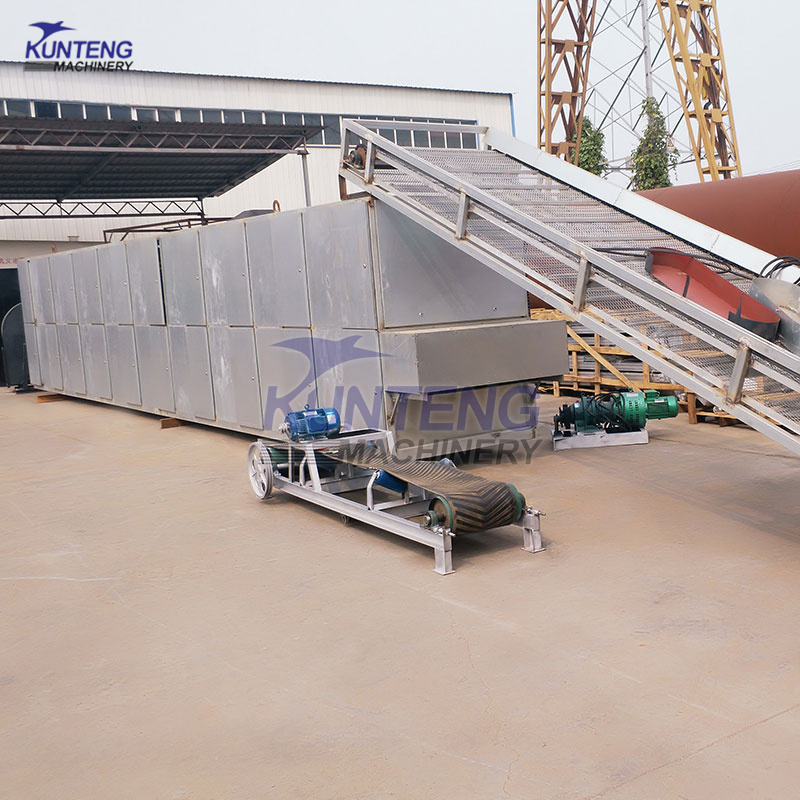

Coal Heat Source Continuous Multi Layer Dryer,Cassava dryer

Send Inquiry

Request To Call Back

Coal Heat Source Continuous Multi Layer Dryer,Cassava dryer

Price 2256483.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Coal Heat Source Continuous Multi Layer Dryer,Cassava dryer Specification

Shape
customized

Product Type
Cassava dryer

General Use
Industrial

Material
Stainless Steel Alloy

Type
Other

Capacity
100-1000 Kg/hr

Weight (kg)
2000 Kilograms (kg)

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Surface Treatment
Other

Voltage
200 Volt (v)

Dimension (L*W*H)
Customized Meter (m)

Feature
Low Noise, Lower Energy Consumption, High Efficiency, Simple Control, Stable Operation, High Performance, ECO Friendly

Color
Customized

Warranty
1 Year

Coal Heat Source Continuous Multi Layer Dryer,Cassava dryer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
10 Pieces Per Month

Delivery Time
10 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
container

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
CE,ISO,CCC

About Coal Heat Source Continuous Multi Layer Dryer,Cassava dryer

Product Description

Production Description of Cassava Dehydrator mesh belt dryer

The Mesh belt dryer machine is widely used for foods, Agriculture products, dehydrated vegetables, fruitfodder, chemical material and other processing industry.

As a professional mesh belt dryer manufacturer, Kunteng Machinery has provided comprehensive drying solution and complete set of drying equipment to global clients over the last 30 years.

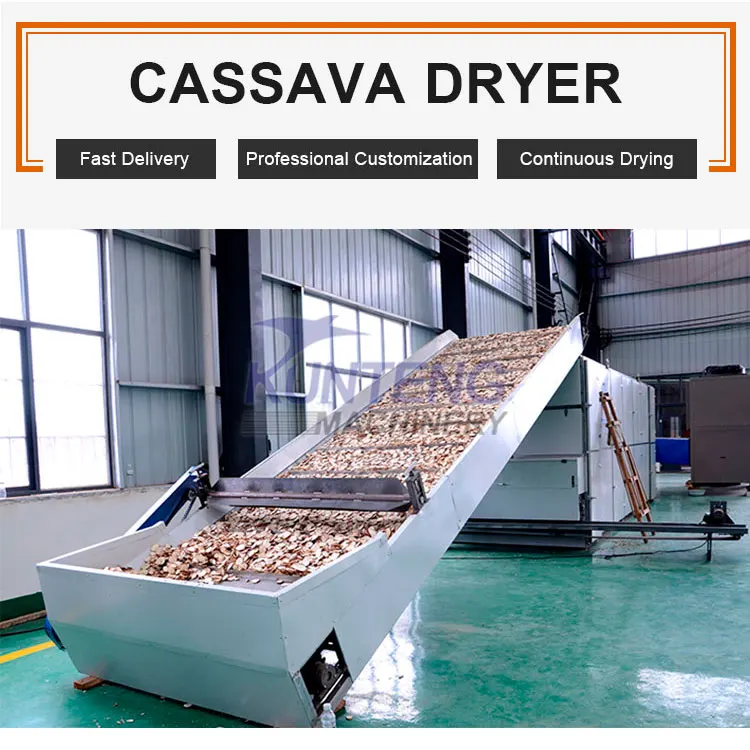

The working principle about the mesh belt cassava drying machine

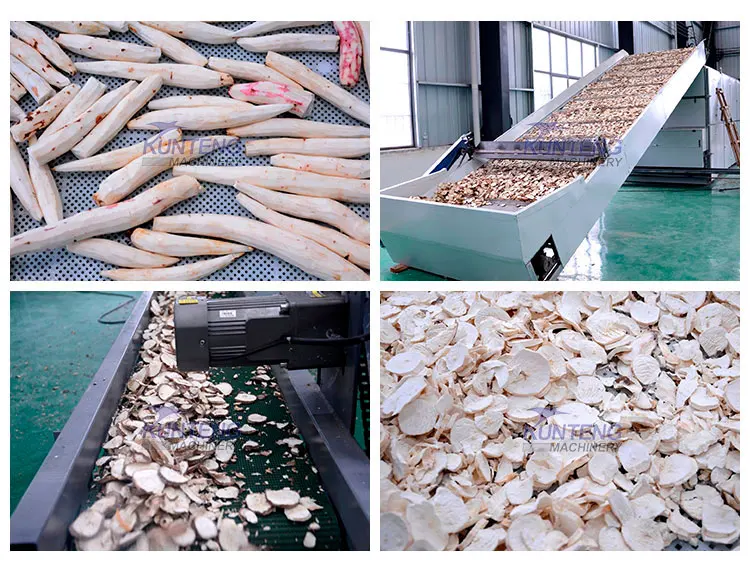

The raw material are transported by the feeding conveyor to the inside of the dryer. The material passes from the first layer to the last layer via the conveyor belt, and the dried material is conveyed by the discharge conveyor. The drying machine is using hot air as the drying medium. The hot air passes through the material from the bottom to top. The final moisture comes out of the top of the dryer. The dryer not only according to heat to dry, but also according to strong air. So it can increase the drying efficiency and drying time.

The heat source can be electricity, natural gas, biomass pellets, wood, coal, diesel, etc.

Structure of cassava dryer

The main accessories of Food mesh belt dryer are: feeding conveyor, discharging conveyor, drying box, fan, control board, heat exchange furnace, burner, connecting pipe, etc.

The technical parameters of mesh belt dryer

Model	KT8-2-4	KT9-2-4	KT10-2-4	KT12-2-4
Layer	4 layers, 5 layers, 6layers
Material thickness	10-70mm
Drying temperature	40-120
Drying time	0.5-5hours
Moisture reduce	75% to 8% (Customized)
Main machine motor	1.5kw	1.5kw	2.2kw	3kw
Hot air draft fan	15kw	15kw	22kw	22kw
Discharing conveyor	B500(0.12kw)	B500(0.12kw)	B500(0.12kw)	B500(0.12kw)
The above parameters are for reference, we can according to customer required provide best solution.

Product Application

Application of hot air dryer equipment

Fruit:Almonds, jujube, peanuts, longans, walnut, papaya chips, apple, lemon, hawthorn, bananas, etc. Vegetable:Asparagus, beans, kidney beans, lentils, eggplant, red pepper, Chinese prickly ash, black fungus, tremella, papaya chips, bitter melon, radish, cucumber slices, mushrooms, mushrooms, ginger, garlic, green onions,Onion,Sweet potato, Pumpkin,etc. Chinese herbs:Flos lonicerae, radix scutellariae, salvia miltiorrhiza, burdock, fructus schisandrae, codonopsis, radix rehmanniae, prepared rhizome of rehmannia, mulberries, forsythia, Chinese wolfberry, etc. Others:Lily, rose, peony seed,fennel seeds,etc.

Customer Site and Feedback

Customer visit

The customer visit our factory to check the dryer. They are satisfied with the quality of the product, and signed contract directly.

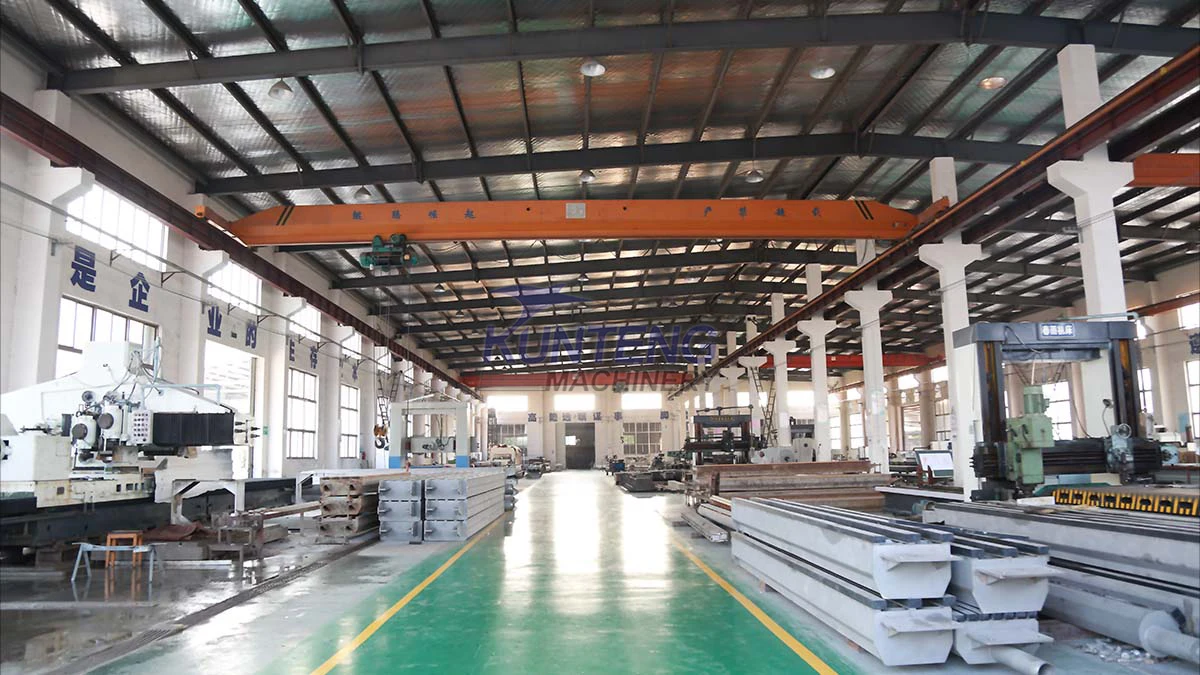

Company Profile

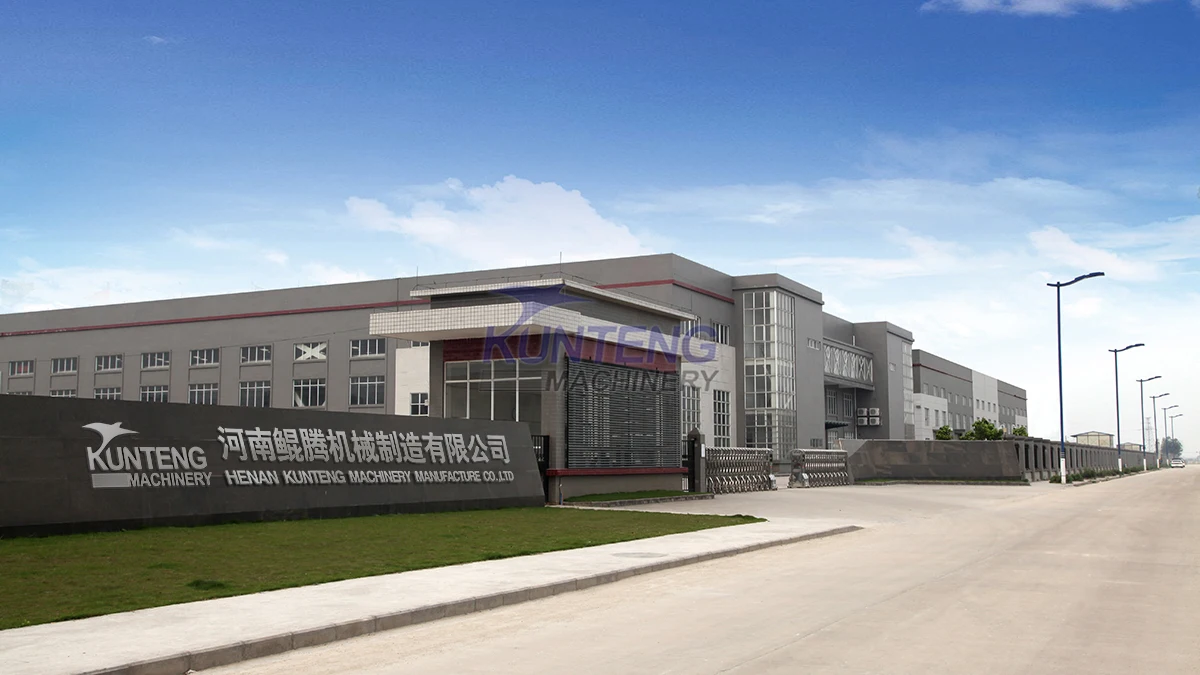

About our company

KUNTENG company was founded in 1999. We have been engaged in manufacturing all kinds of fruit and vegetable drying machines for many years.We got more patented technologies and honor. Our machine has passed ISO9001:2000,CCC,CE certification, We provide customers with a one-stop service of design solutions, complete equipment, on-site installation,and after-sales support. Welcome to cooperation.

PACKING & SHIPPING

Mesh belt dryer sales service:

Pre-sale services:
1) Select suitable equipment model.
2) Design and manufacture products according to your requirements.
3) Train technical personnel for clients.
4) Professional suggestion for customer.
Services during the sale:
1)Take photos(including raw material, semi-products, final products, and loading products)
2) Pre-check and accept products ahead of delivery.
3) Prepare all clearance documents, so that the customer clearance smoothly.
After-sale services:
1) Provide civil engineering drawings of the equipment.
2) Free training(including installation,maintenace) to every customer.
3) Install and debug the equipment, ensure the drying running smoothly.
4) Examine the equipment regularly.
