Customizable Charcoal Briquette Dryer Machine

Send Inquiry

Request To Call Back

Customizable Charcoal Briquette Dryer Machine

Price 430305.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Customizable Charcoal Briquette Dryer Machine Specification

Product Type
Charcoal dryer

General Use
Drying charcoal briquete,vegetable,fruit,flower,herb,fish,meat,etc

Material
Charcoal

Product Shape
Customized

Weight (kg)
1000 Kilograms (kg)

Type
Briquette Machines

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Cooling System
Air Cooling System

Voltage
220-420V can be customized Volt (v)

Motor
AC Motor

Briquette Size
customized

Dimension (L*W*H)
3800*2500*2200 Millimeter (mm)

Feature
Low Consumption, Energy Saving, Compact Structure, High Efficifiency, Automatic Feeding System, Automatic Discharging System, Customized Accessories

Color
Other

Warranty
1 year

Customizable Charcoal Briquette Dryer Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Paypal, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
10 Units Per Month

Delivery Time
15 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
CONTAINER

Main Export Market(s)
Western Europe, Middle East, Africa, Asia, Australia, Central America, North America, South America, Eastern Europe

Main Domestic Market
All India

Certifications
CE,ISO,CCC

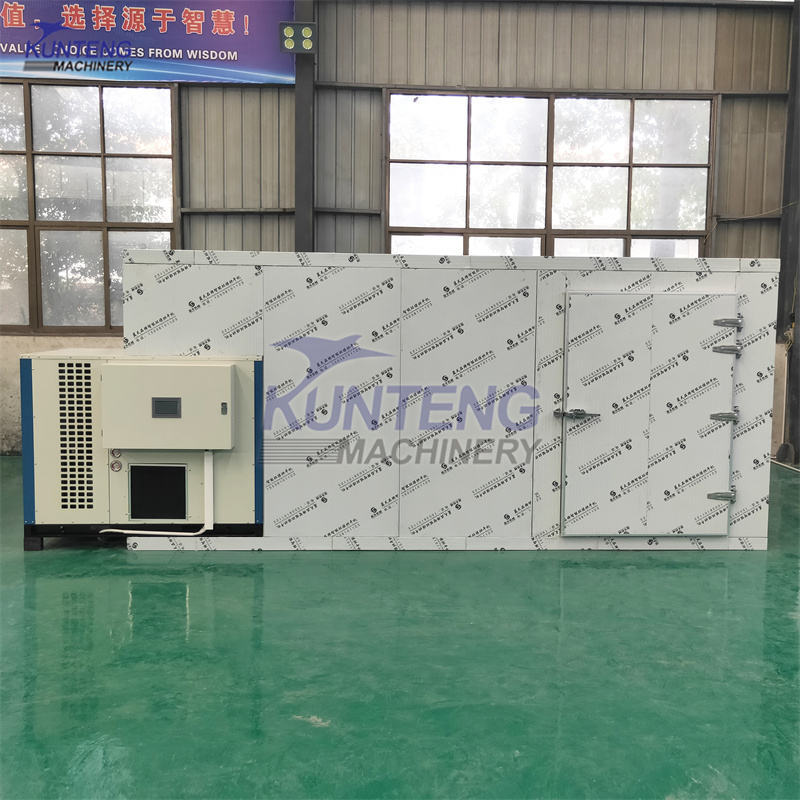

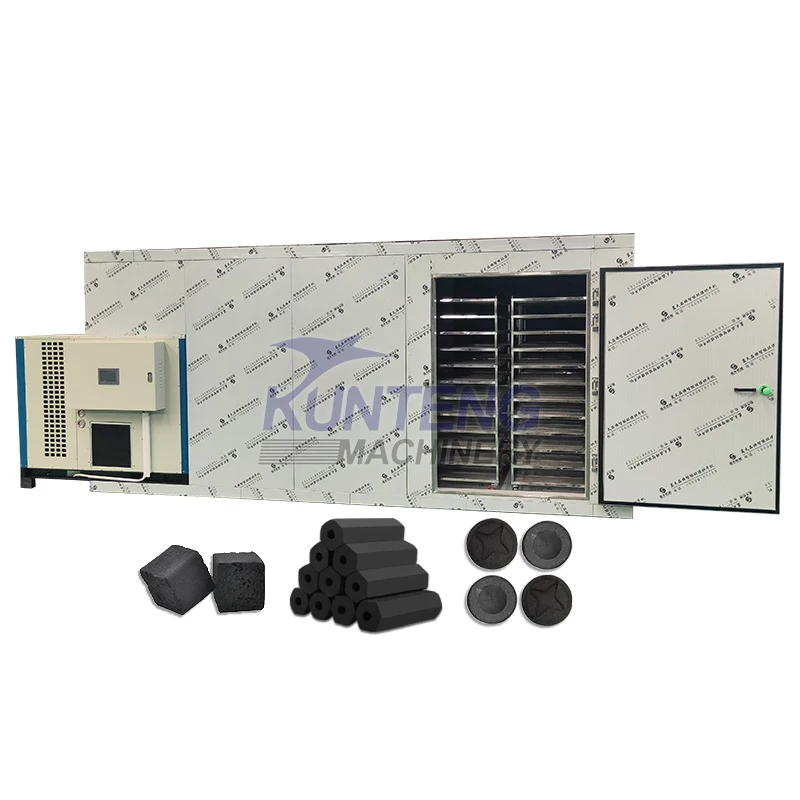

About Customizable Charcoal Briquette Dryer Machine

Customizable Charcoal Briquette Dryer Machine Tray Dryer Machine Charcoal Dryer Room For Charcoal Briquettes

PRODUCTION DESCRIPTION

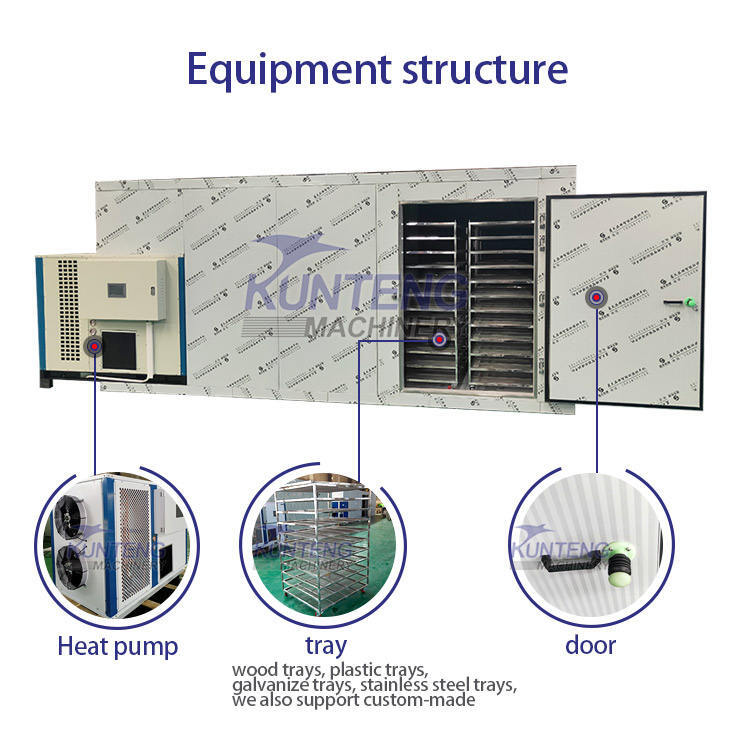

Working principle:Automatic static drying process, Intelligent control of temperature, condenses water vapor on a cold plate and discharged it out of dryer room through air circulation to achieve dehumidification and drying purposes. It is faster than traditional drying process, saves labor costs.

The heat source can be electric,coal,gas,wood chips,etc. according to need to customize.

Advantages:

1.Efficient energy saving,clean and sanitary.
2.Automatic drying process,Less labor cost.

3.Precise temperature control,one key setting.easy to operate

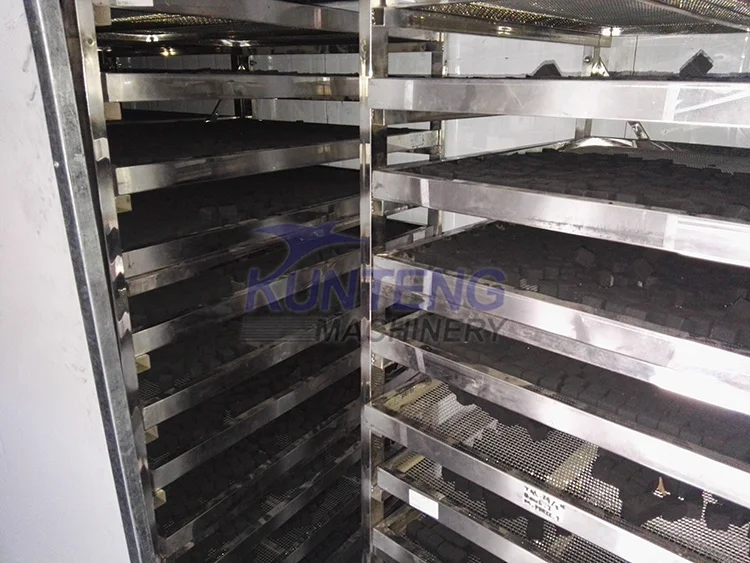

4.Mobile tray carts to put materials in and out save time.
5.Easy to transport and install.

Product parameters

customizable charcoal briquette dryer machine tray dryer machine charcoal dryer room for charcoal briquettes
Model	KT-3P	KT-5P	KT-8P	KT-15P	KT-25P
Dimension(m)	2.821.462.1	42.22.2	5.42.22.2	832.85	84.52.85
Plate material	Double-sided color steel
Plate thickness ( Polyurethane hook plate mm)	T-100	T-75
Air supply mode	Blow down and back up	Cross air blasting		Blow down and back up
Cart size(mm)	/	12008801830
Cart material	/	Calvanized square tube
Number of carts(12Layers)	/	4	6	15	18
Handling capacity(kg)	600-900	960-1440	1440-2160	3600-5400	5400-8100
Total power(kw)	11.35	12	21.45	40.9	65.8

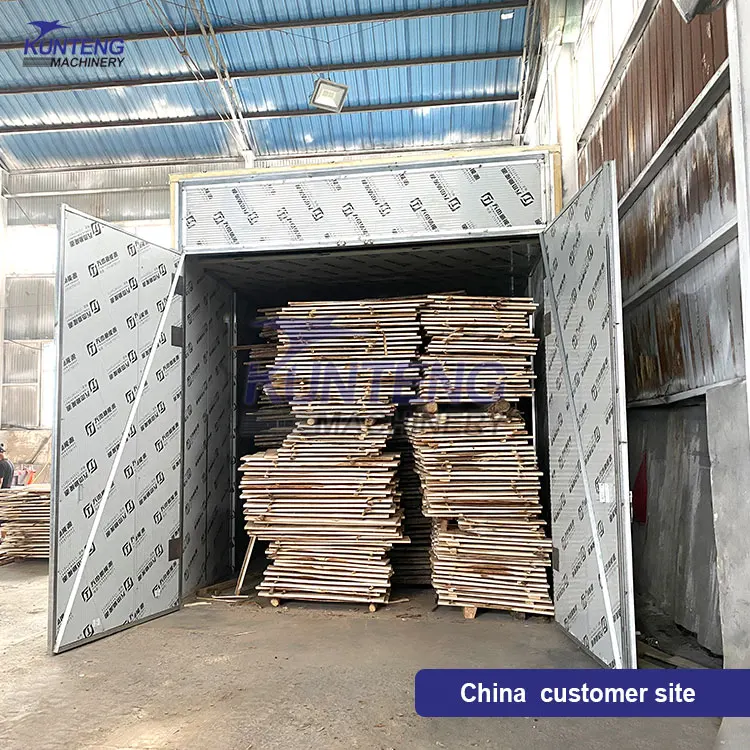

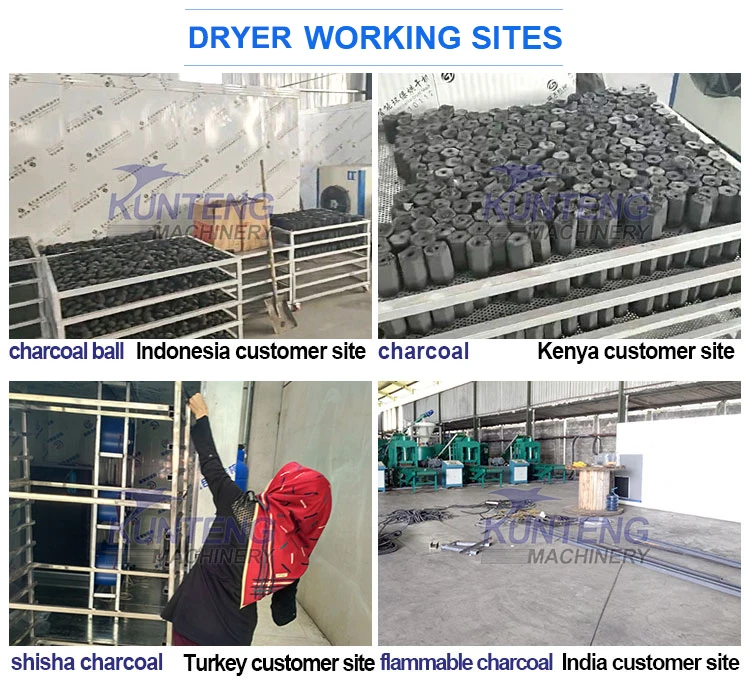

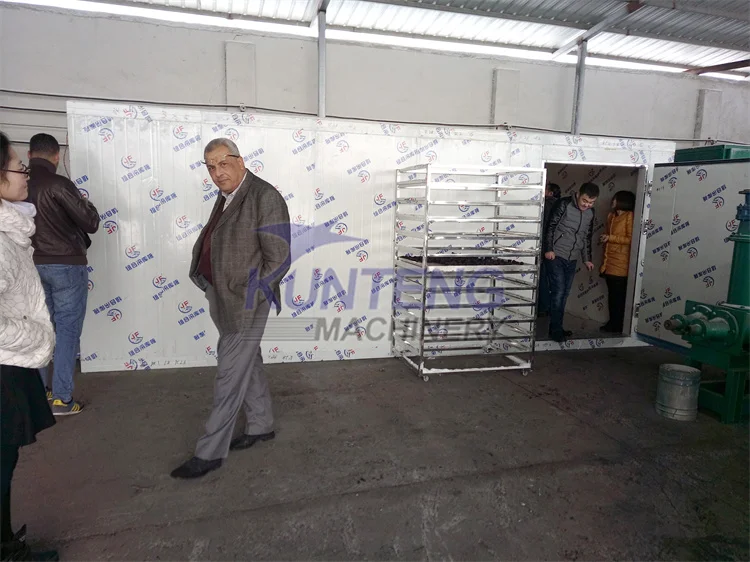

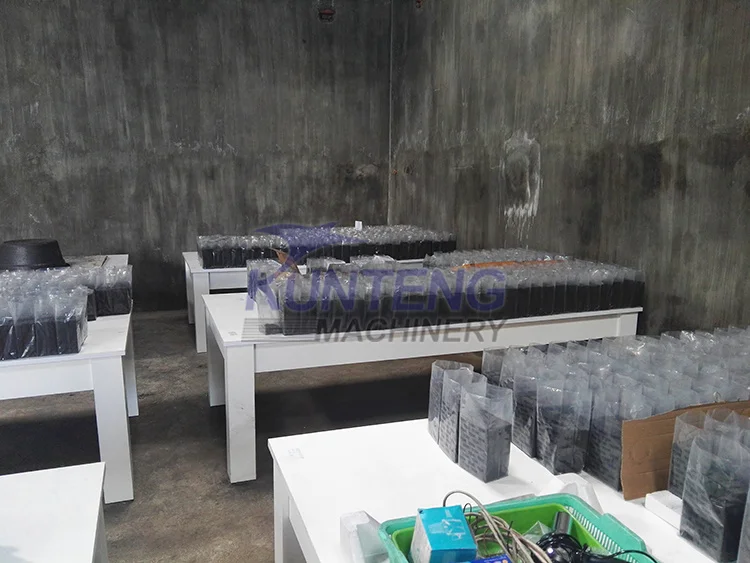

CUSTOMER SITE

customizable charcoal briquette dryer machine tray dryer machine charcoal dryer room for charcoal briquettes

Our service

1. Three guarantee services ,

2. The equipment is well debugged before leaving the factory,

3. On-site installation and debugging of large-scale equipment technicians,

4. The technician will teach you the operating instructions of the equipment,

5. All the above are free.

FAQ

1. who are we?

We are a professional manufacturer in China, passed Alibaba field certification.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.long is the warranty period? Normally 12 months. Except for wearing parts. 4.your delivery time? We will arrange for shipping in factory within 15 working days after receiving the advance payment.
