Automatic Ball Press Machine

Price 251011.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Automatic Ball Press Machine Specification

Product Type
Coal ball press machine

General Use
Heating Cooking BBQ

Material
Charcoal

Production Capacity
1-2 T/hr

Product Shape
Customized

Weight (kg)
650 Kilograms (kg)

Type
Briquette Press Machine

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Cooling System
Air Cooling System

Voltage
380/customized Volt (v)

Motor
AC Motor

Briquette Size
customized

Dimension (L*W*H)
1500*1350*1550 Millimeter (mm)

Feature
Low Consumption, Energy Saving, High Efficifiency, Automatic Feeding System, Automatic Discharging System, Customized Accessories, Compact Structure

Color
Other

Warranty
1 YEAR

Automatic Ball Press Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Paypal, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
10 Units Per Month

Delivery Time
10 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
container

Main Export Market(s)
Asia, Central America, Eastern Europe, Western Europe, Middle East, Africa, South America, Australia, North America

Main Domestic Market
All India

Certifications
CE,ISO,CCC

About Automatic Ball Press Machine

PRODUCTION DESCRIPTION

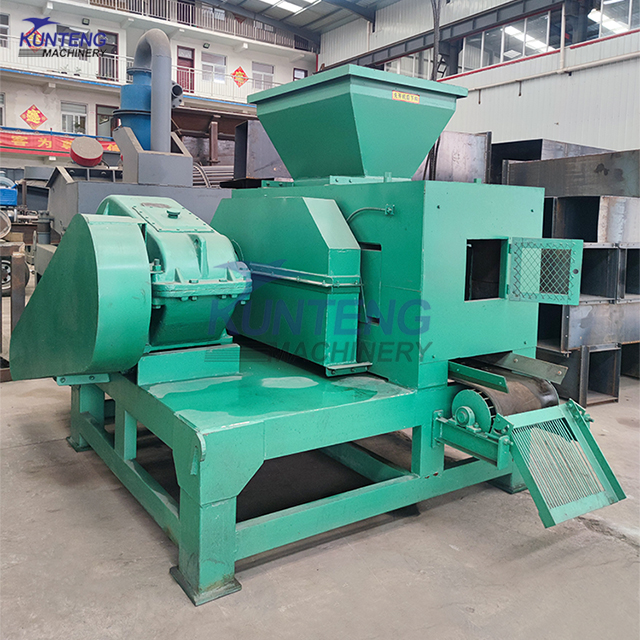

KTYQ-290 COAL BALL PRESS MACHINE

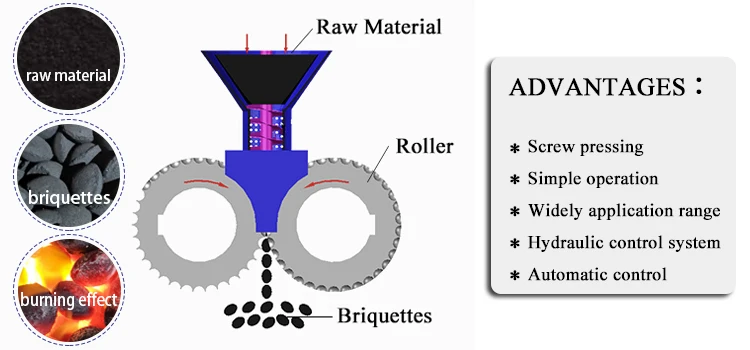

The coal ball briquette machine has four rollers double pressure structure, machinery pressure and hydraulic system can be exchanged working. The rollers of coal ball press machine adopt taper assembly, so that the rollers are easy to be replaced by user, which will save a lot of time and avoid many troubles.

PRODUCTION APPLICATION

This coal ball briquette machine is widely used in coal, metallurgy, chemical industry and other industries.

PRODUCT SPECIFICATIONS

MODEL	ROLLER DIAMETER (MM)	CAPACITY (T/H)	POWER (KW)	REDUCER
290	290	1-2	5.5-7.5	350
360	360	2-3	7.5-11	350
450	450	4-5	18.5-22	400
550	550	5-8	22-30	500
650	650	8-10	30-45	650
850	850	15-20	90	850
1000	1000	25-30	110	1000

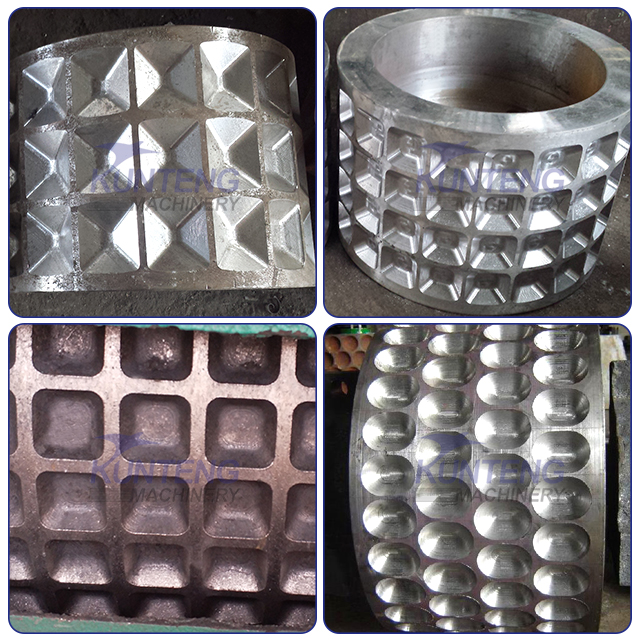

DETAILS DISPLAY

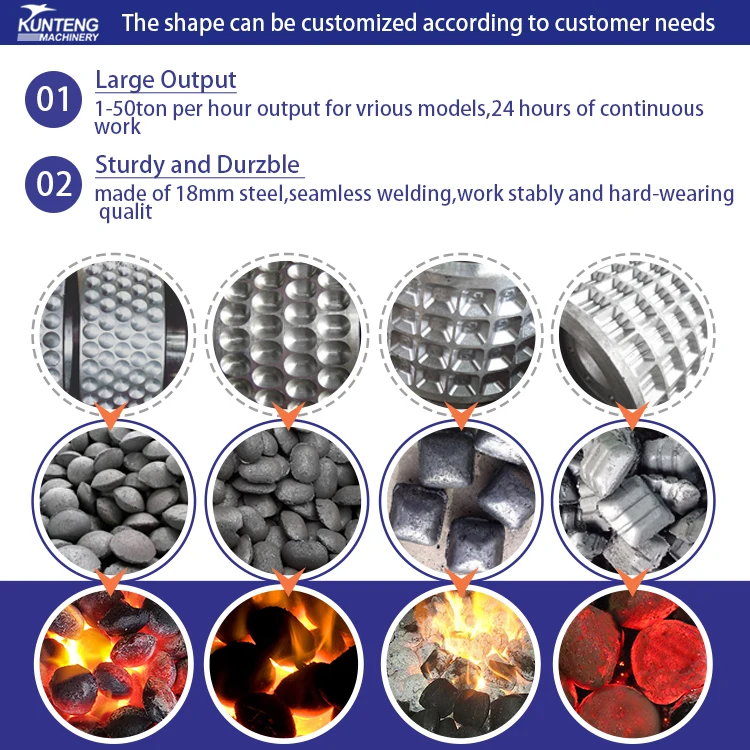

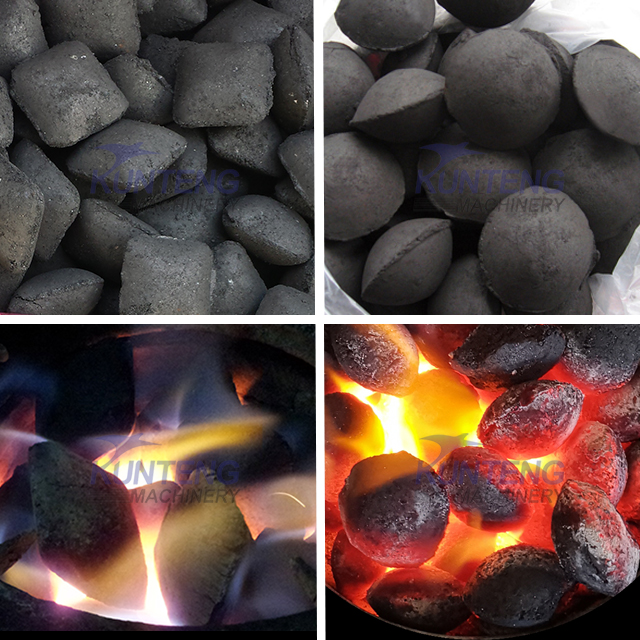

FINAL PRODUCTS

The final production of coal briquette making machine can make Egg-shaped, oval-shaped, circular-shaped, square-shaped, columnar-shaped, banding-shape, cake-shaped, etc.Final production size range 18mm-80mm,its customization depends on customer need.

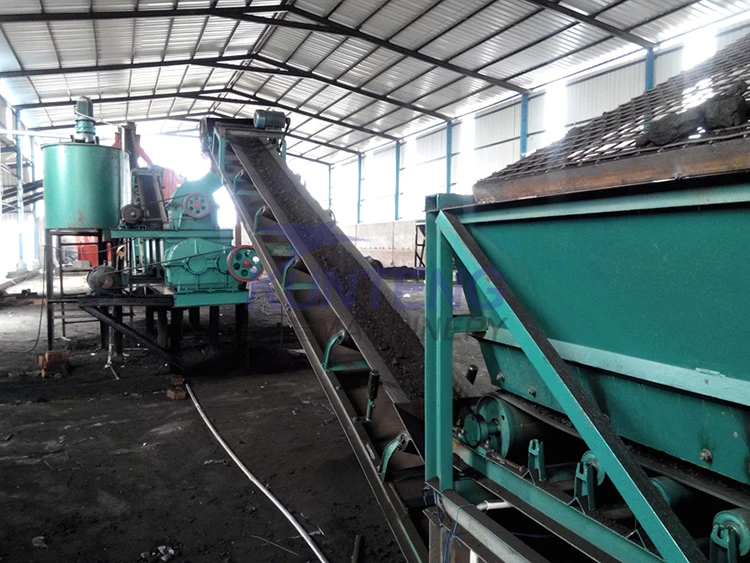

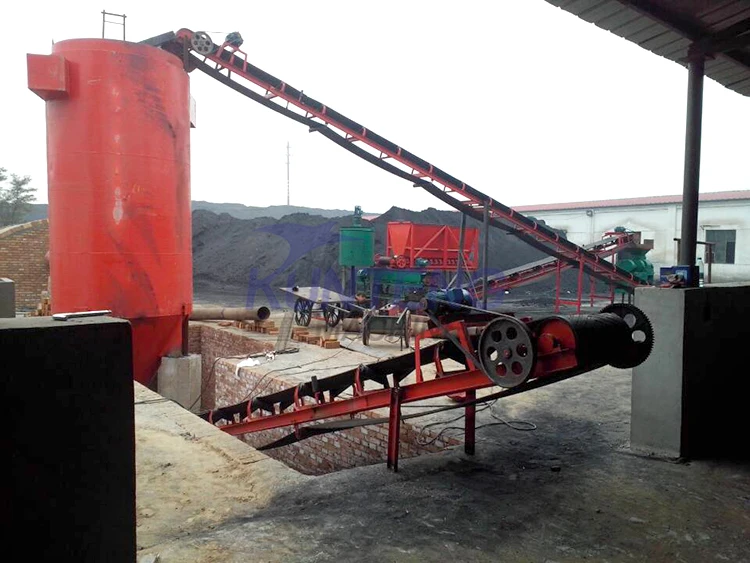

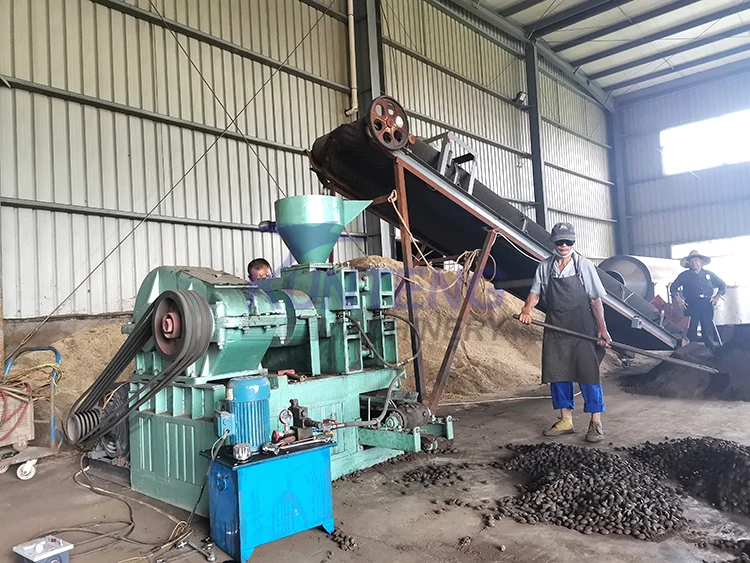

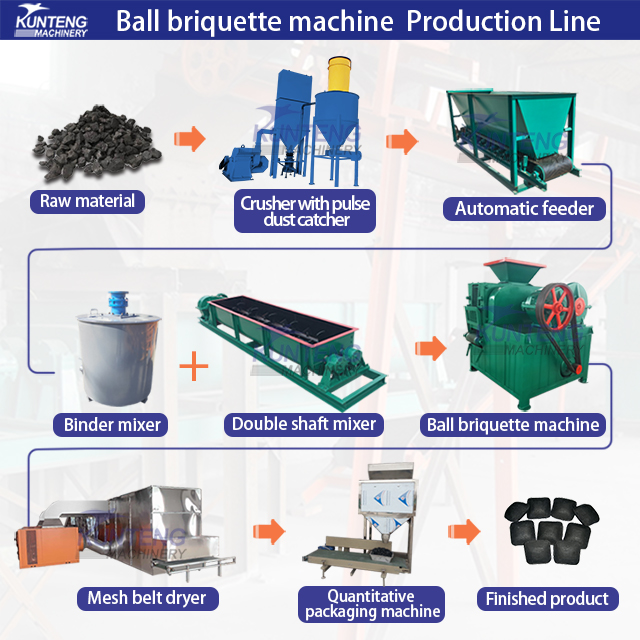

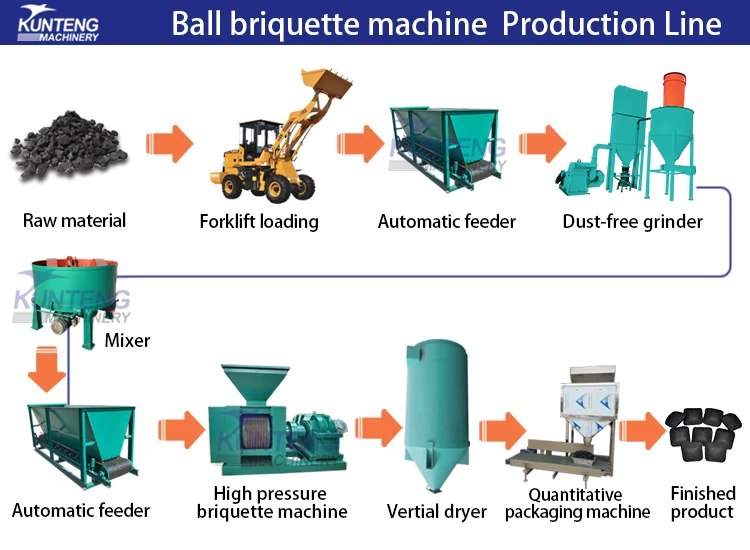

PRODUCTION LINE

The charcoal ball briquette making process could follow the steps below:

Feeding-- crushing---- mixing------ ball pressing------ drying------final product

SHIPPING SITE

All coal briquette making machines will be processed to be rustproof and moisture proof before delivery.

VISITORS

FAQ

Q1 Are you a factory or a trading company?

A1 We are a professional manufacturer in China, passed Alibaba field certification.

Q2 May I know more about the briquette making machine?

A2 Your requirements in details will help us a lot for the information of the briquette making machine. Such as the raw material, the input capacity, the power supply, etc.

Q3 What is the binders used in the briquetting process?

A3 It depends on the properties of the raw material, and also the usage of briquettes. We will provide you with guidance and help.

Q4 How long is the warranty period?

A4 Normally 12 months. Except for wearing parts.

Q5 Whats your delivery time??

A5 We will arrange for shipping in factory within 10 working days after receiving the advance payment. When there are briquette machines in stock, it will be shorter.
