briquette diameter can be 10-60mm.
mould shape can be ball, oval, pillow, heart shape, etc.

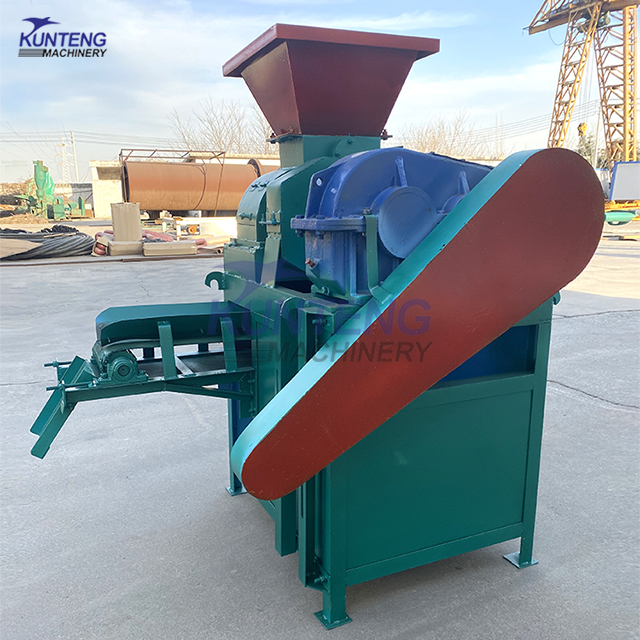

Coal powder pellet press smokeless industrial sawdust pellet press charcoal forming equipment coal ball forming machine
Price 173059.0 INR/ Piece
MOQ : 1 Piece
Coal powder pellet press smokeless industrial sawdust pellet press charcoal forming equipment coal ball forming machine Specification
- Product Type
- Coal powder ball press machine
- General Use
- Coal powder, carbon powder, mineral powder
- Material
- Charcoal
- Production Capacity
- 1-2 T/hr
- Product Shape
- Customized
- Weight (kg)
- 1100 Kilograms (kg)
- Type
- Briquette Machines, Briquette Press Machine
- Computerized
- Yes
- Automatic
- Yes
- PLC Control
- Yes
- Motor
- AC Motor
- Briquette Size
- customized
- Dimension (L*W*H)
- 1500*1350*1550 Millimeter (mm)
- Feature
- Low Consumption, Energy Saving, Compact Structure, High Efficifiency, Automatic Feeding System, Automatic Discharging System, Customized Accessories
- Color
- Other
- Warranty
- 1year
Coal powder pellet press smokeless industrial sawdust pellet press charcoal forming equipment coal ball forming machine Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Paypal, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Supply Ability
- 10 Pieces Per Month
- Delivery Time
- 15 Days
- Sample Available
- No
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- container
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- CE,ISO,CCC
About Coal powder pellet press smokeless industrial sawdust pellet press charcoal forming equipment coal ball forming machine
Product Overview
Factory directly sell bamboo charcoal forming equipment wood coconut shell coal charcoal machine briquette machines
Briquette machines is a used to forming some material into different shape, then use for different field. It can forming from different material, such as charcoal powder, metal powder, mineral powder, carbon black, coal dust, iron powder. After the pressing of our machine, powder and granule are formed into various shapes of balls. This processing changes the using way of coal brings many good efforts.
charcoal forming equipment have two rollers ,compress the raw material and run opposite .make the powder into ball .the briqutte machine work principle is very easy and the well operation.
Features of briquette machines
1) the roler is made by hard materials , with good wear resistance and long life time ;
2) the service life of wearing parts is up to 4000 hours ;
3) the charcoal forming equipment electricity cost reduces by 60%
4) the coke press machine is easy to operate and maintain ;
5) the molding material is energy - saving , easy to transport and higher utilization of waste ;
6) the final product is smokeless , non - toxic , none peculiar and environmental protection ;

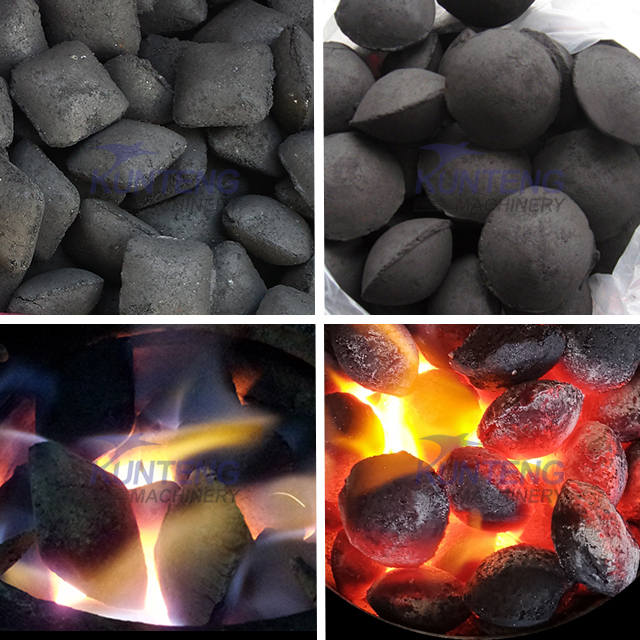

7) the end products shapes include oval , round , square , bal egg - shaped and
pilow - shaped .
2) the service life of wearing parts is up to 4000 hours ;
3) the charcoal forming equipment electricity cost reduces by 60%
4) the coke press machine is easy to operate and maintain ;
5) the molding material is energy - saving , easy to transport and higher utilization of waste ;
6) the final product is smokeless , non - toxic , none peculiar and environmental protection ;
7) the end products shapes include oval , round , square , bal egg - shaped and
pilow - shaped .
Parameter
Details display

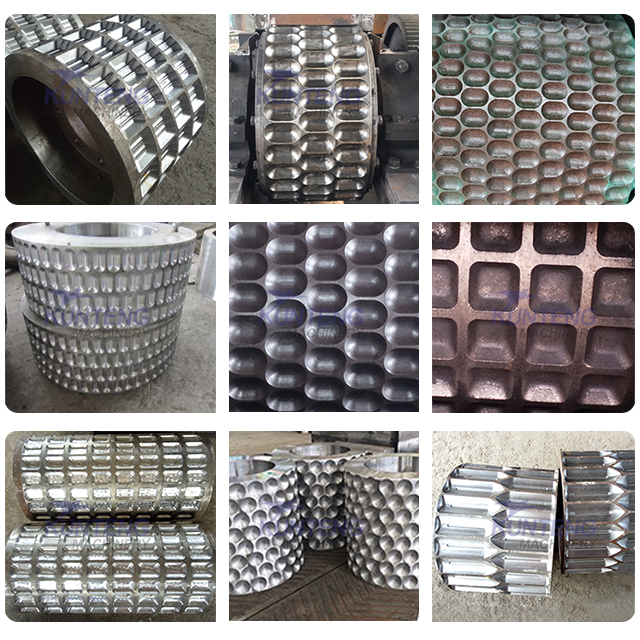

About mould for briquette machines
The material of the mold is made of No. 65 manganese steel, which is forged.

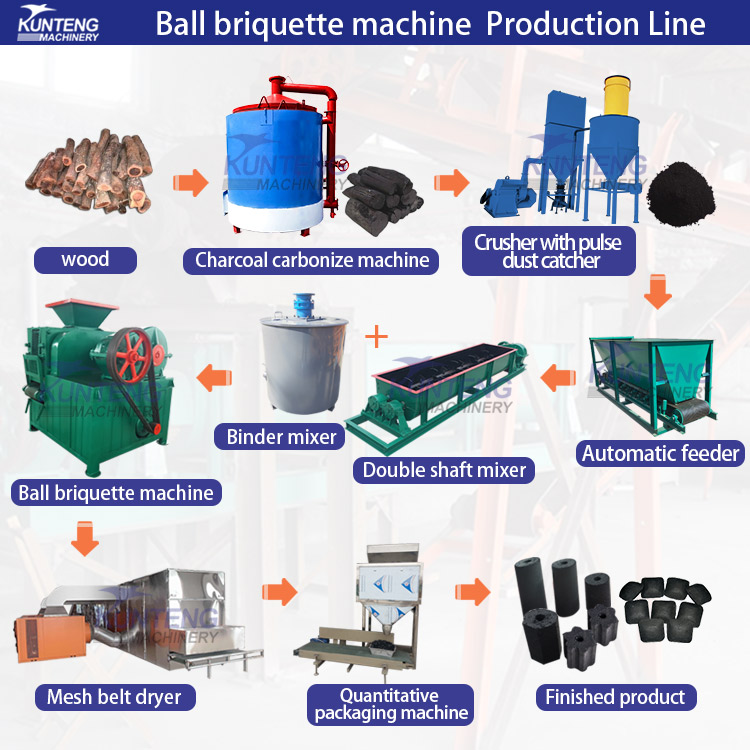

Production line design
Production line introduction
For the charcoal briquette machine production line, we also design it according to customer raw material, capacity or other requirement. now i explain roughly production line for you, if you have some requirement you can let me know.
1. If your material is coal, charcoal, will need a crusher to crush it into powder less than 2mm.
2. Owing to some material have no stickiness, so you need add some binder into it and mix.
3. After mixing material going into charcoal briquette machine forming directly.
4. After forming product, some product need dry it to let it become hardness for using.
5. Pack final product for sell.

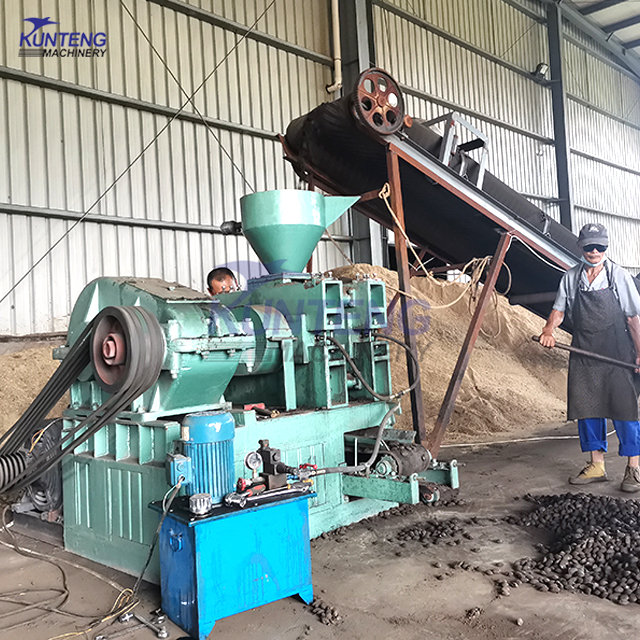

Successful Project
Related products
Company Profile
Shipping
1. Payment:40% TT in advance ,60%TT balance pay of before delivery
2. Packing: single briquette machine will use wooden pack, production line machine will use plastic film to pack then loading into container directly.
3. The briquette machine parts need to be put in a fixed container , should be fixed well , lest collision and wear , or lost .
2. Packing: single briquette machine will use wooden pack, production line machine will use plastic film to pack then loading into container directly.
3. The briquette machine parts need to be put in a fixed container , should be fixed well , lest collision and wear , or lost .
Advanced Briquetting Technology
This briquette press utilizes cutting-edge PLC control and an AC motor to optimize pellet formation from coal, sawdust, and charcoal powders. The automatic feeding and discharging systems streamline operation, while customizable features adapt to varied industrial requirements. Tailored briquette shapes and sizes are easily achievable, enhancing both productivity and versatility in production environments.
Benefits of Automatic Operation
Automated processes in this equipment reduce manual intervention and save operational time. The integration of computerized management guarantees consistent output and minimal errors, boosting throughput up to 2 tons per hour. Compact design aids in efficient space utilization, and the energy-saving system ensures reduced power consumption while maintaining high production standards.
FAQs of Coal powder pellet press smokeless industrial sawdust pellet press charcoal forming equipment coal ball forming machine:
Q: How does the coal powder pellet press transform raw materials into briquettes?
A: The machine compresses coal powder, carbon powder, or mineral residues using a hydraulic and mechanical process. Automated feeding delivers the material into the press, where it is shaped into briquettes of customized size and form through the press dies. The automated discharging system then releases the finished pellets for collection.Q: What industries can benefit from using this briquette press machine?
A: Manufacturers in the energy, metallurgy, and environmental sectors can utilize this equipment for producing smokeless briquettes and compact pellets. Its adaptability supports suppliers, exporters, and other industrial users in India requiring customized fuel or material briquettes for commercial or industrial purposes.Q: When should the machine undergo routine maintenance, and what aspects are essential to check?
A: Routine maintenance is recommended every three months. Key components to inspect include the AC motor, PLC control unit, feeding/discharging systems, press dies, and mechanical joints. Prompt servicing promotes sustained efficiency and protects the warranty coverage, which lasts for one year.Q: Where is this briquette press typically installed within industrial facilities?
A: The compact design allows it to be set up in processing workshops, production lines, or dedicated briquetting areas. Its space-efficient footprintmeasuring 1500*1350*1550 mmsuits varied industrial layouts and can be integrated seamlessly with auxiliary equipment or automated handling systems.Q: What is the process for customizing briquette shapes and sizes?
A: The press machine offers customization through replaceable dies and programmable PLC settings. Clients specify their requirements, and corresponding accessories or dies are fitted to deliver the desired briquette dimensions and shapes, creating tailored pellets to meet specific project needs.Q: How does the automatic feeding and discharging system enhance operational efficiency?
A: The automatic systems minimize manual labor by consistently supplying raw material to the press and efficiently removing finished briquettes. This not only speeds up production but also fosters uniform output and reduces downtime, contributing significantly to overall operational productivity.
