Continuous Plantain Herb Osmanthus Flower Dryer Lemongrass Leaves Dryer Mint Leaves Dryer Drying Machine

Name: Continuous Plantain Herb Osmanthus Flower Dryer Lemongrass Leaves Dryer Mint Leaves Dryer Drying Machine
Brand: Henan Kunteng Machinery Manufacturing Co., Ltd
Price: 4072998.0 INR
Availability: InStock

Price 4072998.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Continuous Plantain Herb Osmanthus Flower Dryer Lemongrass Leaves Dryer Mint Leaves Dryer Drying Machine Specification

Product Type
herb leaf dryer

General Use
Drying leaves flower leaf vegetable fruit herb.etc

Type
Other

Weight (kg)
7000 Kilograms (kg)

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Surface Treatment
Other

Voltage
220 Volt (v)

Feature
High Performance, High Efficiency, Simple Control, Stable Operation, ECO Friendly, Low Noise, Lower Energy Consumption

Warranty
1year

Continuous Plantain Herb Osmanthus Flower Dryer Lemongrass Leaves Dryer Mint Leaves Dryer Drying Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Paypal, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
10 Units Per Month

Delivery Time
15 Days

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
container

Main Export Market(s)
Asia, North America, Australia, Central America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
CE,ISO,CCC

About Continuous Plantain Herb Osmanthus Flower Dryer Lemongrass Leaves Dryer Mint Leaves Dryer Drying Machine

PRODUCTION DESCRIPTION

Continuous plantain herb osmanthus flower dryer lemongrass leaves dryer mint leaves dryer drying machine

KUNTENG Industrial Drying machine has 30 years of rich drying experience and a data base of hundreds of agricultural products drying processes. It can customize production lines and supporting facilities at different prices according to customers' needs for different materials.

Working principle

Mesh Belt Dryer Machine adopts continuous components and has a multi-layer structure in the dryer, The inner mesh surface of the oven is made of 304 stainless steel,The oven adopts multi-layer mobile mesh belt transmission, wet materials are conveyed from the first layer to the last layer by conveyor belt,the hot air flow passes through the mesh belt from bottom to top.The final moisture comes out of the top of the dryer. the dried hemp are out from discharge conveyor.

Main components of dryer

Mesh belt hemp drying machine main including / Feeding conveyor / Discharge conveyor / Drying box / Fan / Control panel / Heat exchange furnace / Burner / Connection pipes,etc.

Mesh Belt Dryer Heat Source

The heat source:

Mesh belt hemp drying machine can uses electric, coal, natural gas, diesel oil,wood, biomass pellet or steam as heat source.can be customizable.

Product parameters

Model(Width*Length)	KT1.5-6-4	KT2-8-4	KT2-9-4	KT2-10-4	KT2-12-4
Layers	4
Drying area()	29	45	51	57	69
Spread thickness of material(mm)	50-200
Working temperature()	0-120
Working time(hour)	24
Capacity(t/h)	100-150kg/h	200kg/h	250kg/h	300kg/h	500kg/h
heat exchange furnace(M)	3.212.7	3.91.263	3.91.263	4.71.53	4.71.53
Induced draft fan(kw)	11	15	15	22	22
Exhaust fan(kw)	1.5		2.2
Feeding conveyor(kw)	1.5	2.2	2.2	2.2	3
Discharge conveyor(kw)	0.55
Total power(kw)	14.55	19.25	19.95	26.95	27.75
LP gas consumption (90 degree fanrenheit)	20m/H	25m/H	28m/H	30m/H	36m/h
Place requirement (WLH)M	4.5142.7	5192.8	4.5202.8	5.5212.8	5.5232.8

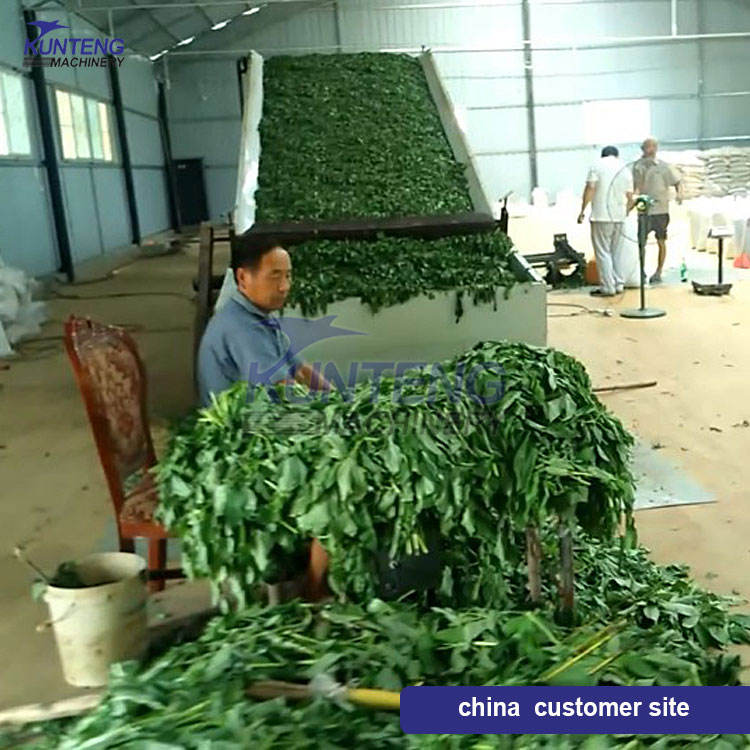

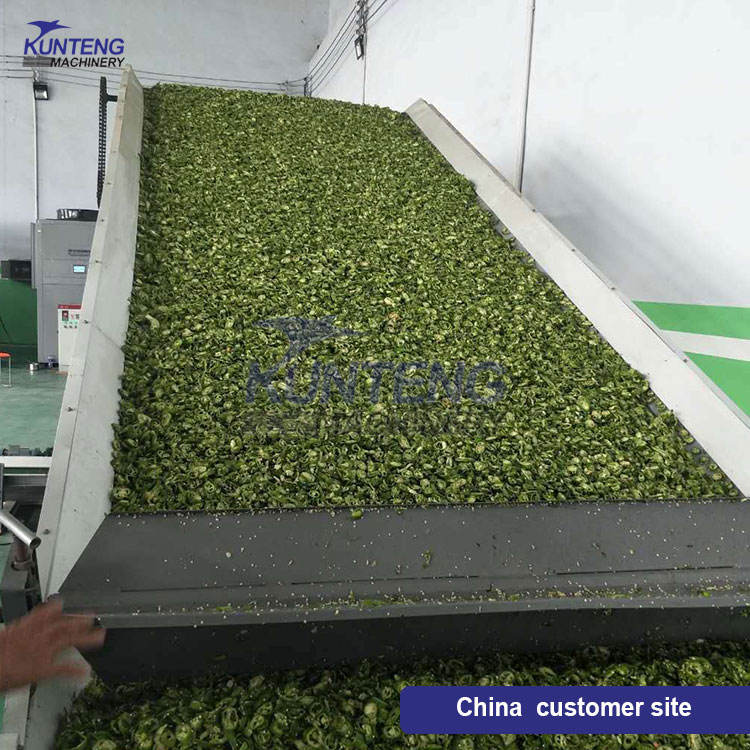

CUSTOMER SITE

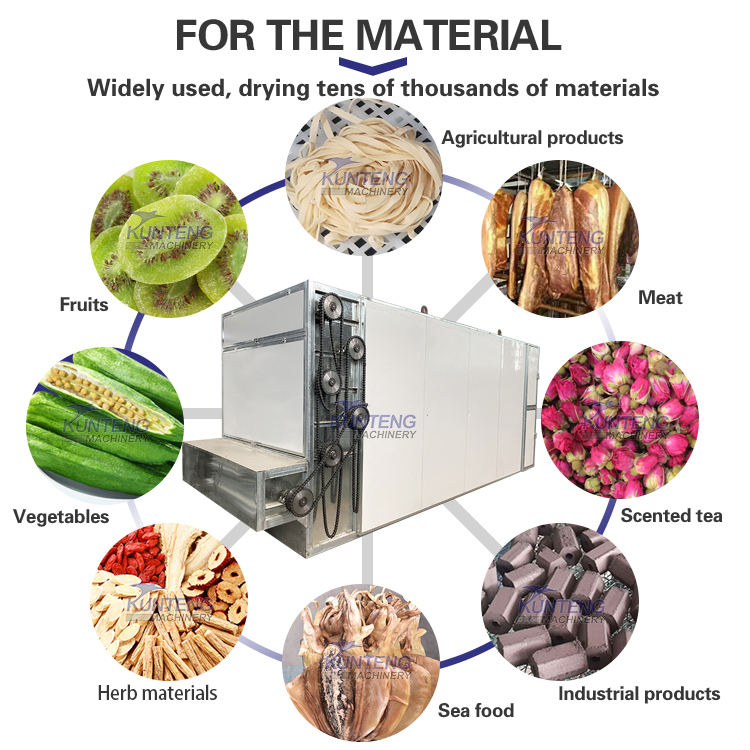

Continuous Mesh Belt Dryer Large application: herb,fruits,vegetables,leaf,flowers,nut,seafood,etc.

Packing and shipping

COMPANY PROFILE

KUNTENG company was founded in 1999. engaged in heat pump dryers,vegetable and fruit drying machine,herb leaf drying machine, mesh belt dryers for many years.We got more patented technologies and honor. Our machine has passed ISO9001:2000CCC,CE certification, We provide customers with a one-stop service of design solutions, complete equipment, on-site installation,and after-sales support. Welcome to cooperation.
