Vegetable dehydrator Onion Machine Production Line
Vegetable dehydrator Onion Machine Production Line
Vegetable dehydrator Onion Machine Production Line
Vegetable dehydrator Onion Machine Production Line
Vegetable dehydrator Onion Machine Production Line
Vegetable dehydrator Onion Machine Production Line
Vegetable dehydrator Onion Machine Production Line
Vegetable dehydrator Onion Machine Production Line
Vegetable dehydrator Onion Machine Production Line
Vegetable dehydrator Onion Machine Production Line
Vegetable dehydrator Onion Machine Production Line
Vegetable dehydrator Onion Machine Production Line

Vegetable dehydrator Onion Machine Production Line

Price 2037048.0 INR/ Set

MOQ : 1 Set

Vegetable dehydrator Onion Machine Production Line Specification

  • Shape
  • customized
  • Product Type
  • Onion slice dryer
  • General Use
  • Industrial
  • Material
  • Stainless Steel Alloy
  • Type
  • Other
  • Capacity
  • 5-30 Ton/day
  • Weight (kg)
  • 10000 Kilograms (kg)
  • Computerized
  • Yes
  • Automatic
  • Yes
  • Touch Screen
  • Yes
  • Control System
  • Frequency Speed Control
  • Surface Treatment
  • Other
  • Voltage
  • 200/customized Volt (v)
  • Dimension (L*W*H)
  • customized Meter (m)
  • Feature
  • Simple Control, Stable Operation, High Performance, ECO Friendly, Low Noise, Lower Energy Consumption, High Efficiency
  • Color
  • customized
  • Warranty
  • 1 Year


Vegetable dehydrator Onion Machine Production Line Trade Information

  • Minimum Order Quantity
  • 1 Set
  • Payment Terms
  • Paypal, Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • Supply Ability
  • 10 Sets Per Month
  • Delivery Time
  • 10 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • container
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • CE,ISO,CCC


About Vegetable dehydrator Onion Machine Production Line

Product Overview

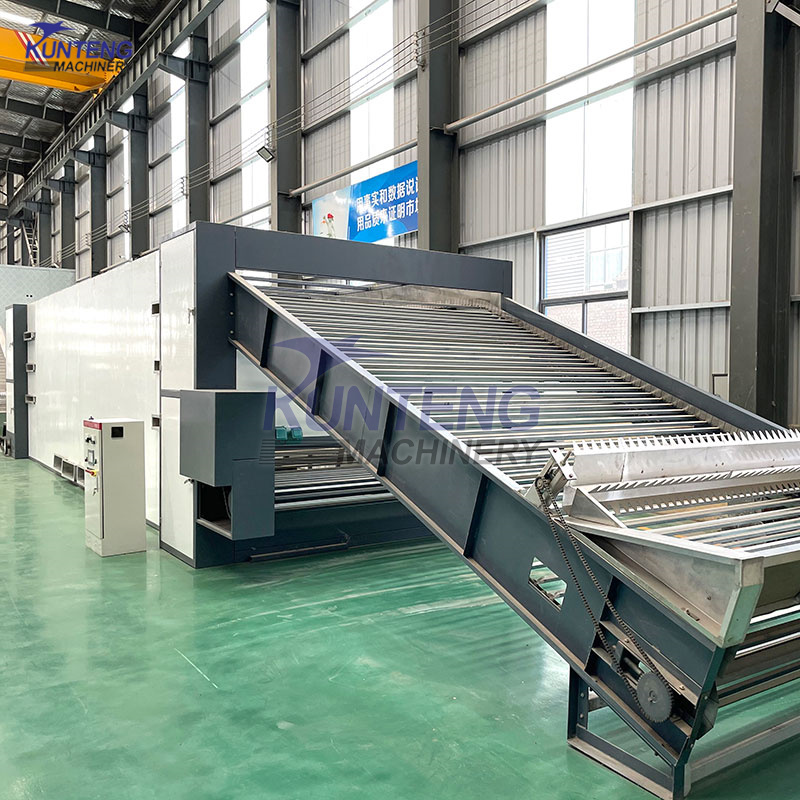

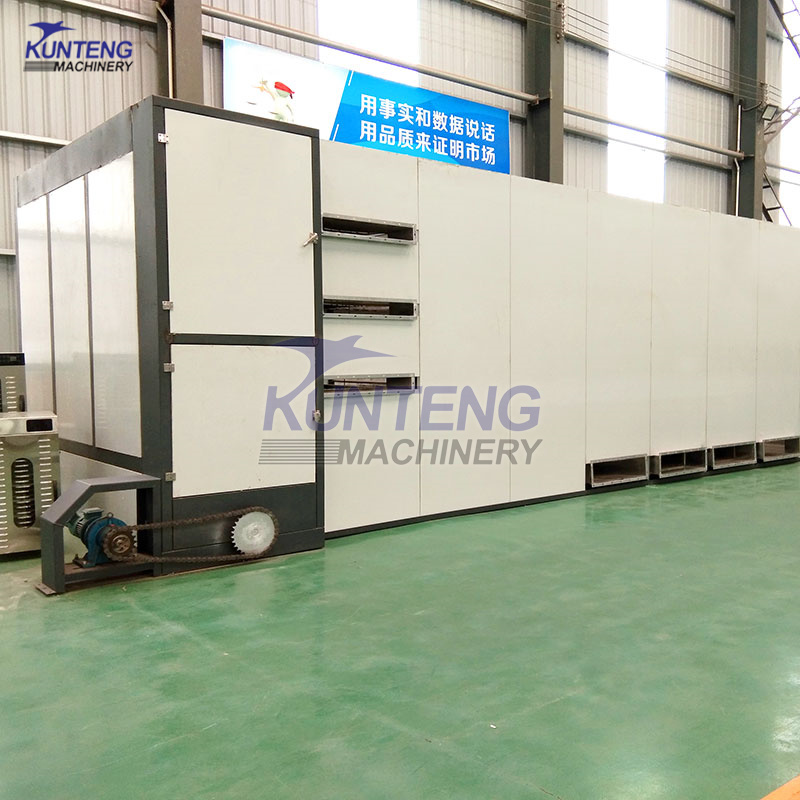

Stainless automatic high capacity 4 layers mesh belt potato chips cassava dryer professional onion drying machine


Introduction of cassava dryer drying machine
Cassava dryer drying machine is using hot air as drying medium, material is transported by multi-layers stainless steel mesh belt. The hot air across the mesh belt from the bottom layer to top layer, finally, the humidity come out from top of the dryer and the dried hemp come out by discharge conveyor. The heat source have electricity, gas, diesel, wood, biomass, boiler. You can choose the one more your convenience and economical for you.
Working Principle of cassava dryer drying machine
The Professional cassava dryer drying machine utilize the hot air produced by the heat furnace as the drying medium.
Through the hot air distribution unit, the hot air is transported to the mesh belt.
The hot air volume, mesh belt running speed, temperature and humidity can be adjusted by the electric control system, to ensure the continuous and automatic operation.
The cassava dryer drying machine not only according to heat to dry, but also according to strong air, the air volume can reach 40000 cube meters per hour.
Specifications
Model
Fan Power
Belt body length
(if burn solid material)
Total length
Heating source
KT 6-4
11 kw
18 m
7.5 ton
gas, coal, biomass pellet, electric, steam
KT 12-4
30 kw
30 m
9.2 ton
KT 18-4
55 kw
34 m
13.6 ton
size can be customized according to your capacity, like 10 m, 15 m, 20 m, 24 m etc, we all can make loading

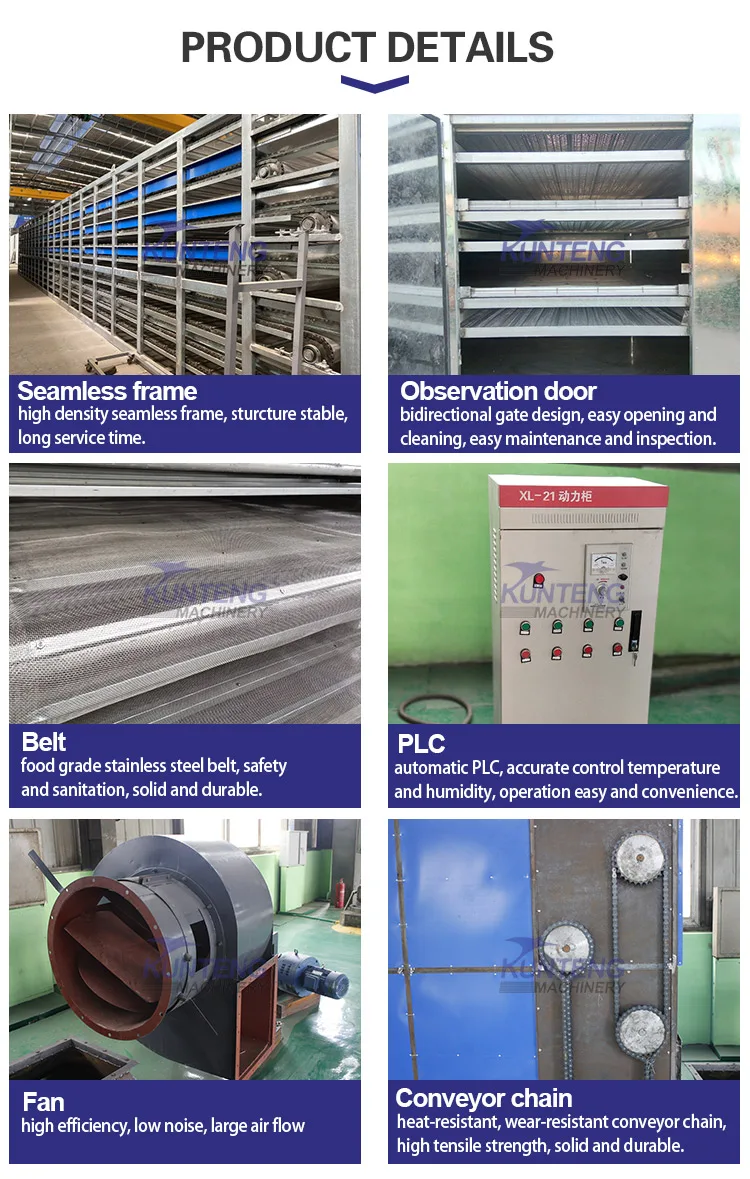

Machine details
Structure of garlic drying machine
1.Heat Exchange Furnace
2.Induced Draft Fan
3.Feeding Conveyor
4.Distribute Device
5.Dryer Body
6.Discharge Device
7. Electric Control Panel
Advantages of cassava dryer drying machine
1. Adopt multilayered structure, large area of drying, it can continuously produce in large quantities.
2. Heat exchange furnace adopt new fireproofing and highly quality steel, although the strict calculation of construction completion, easy construction and operation, easy maintenance.
3. The air blow to the material is pure, will not pollute the materials.
4. Bidirectional oven door, in order to facilitate inspection, dismantling parts, easy to open and clean.

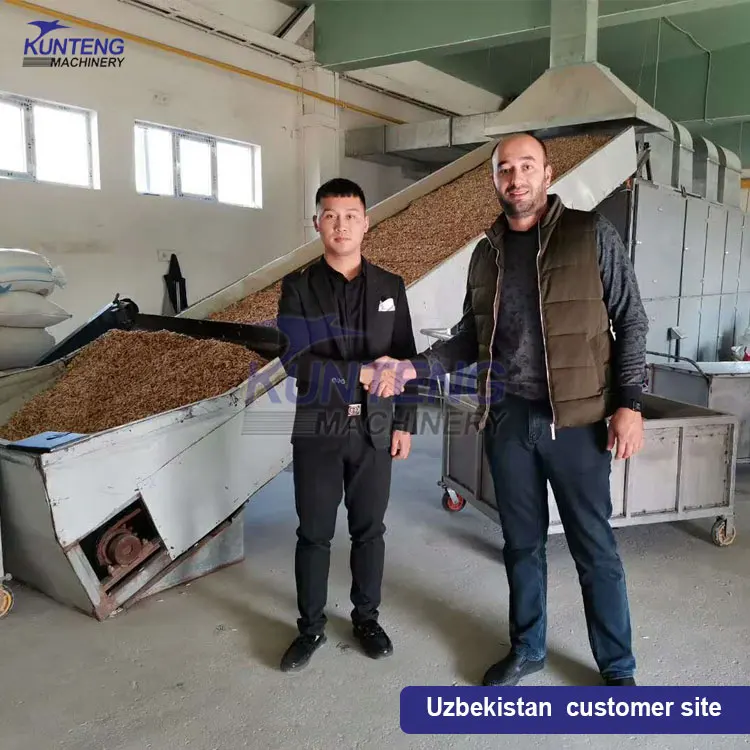

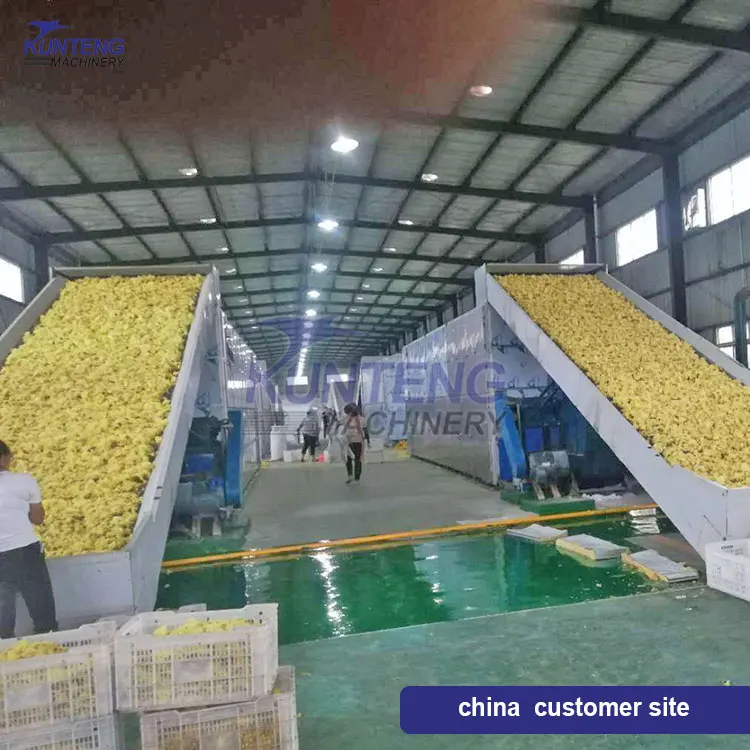

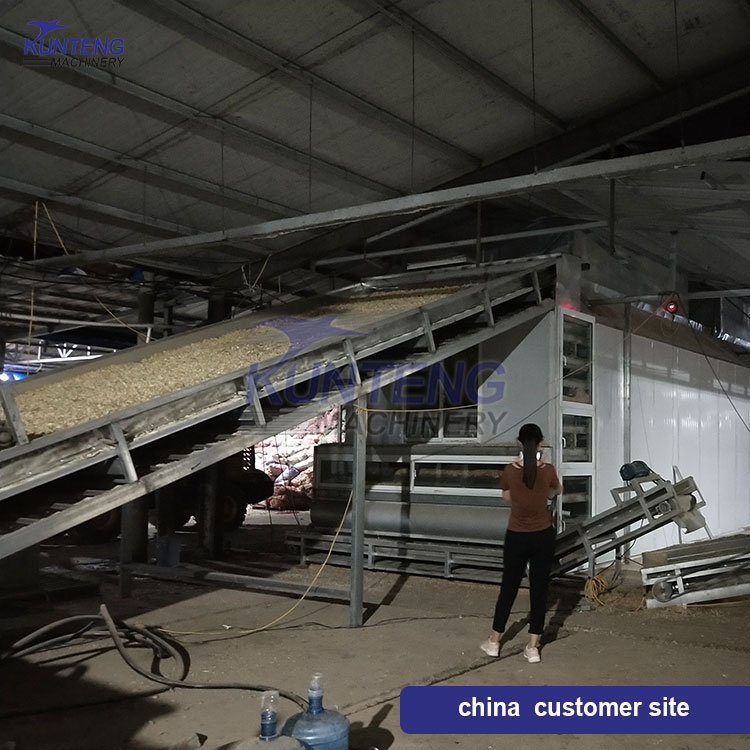

Successful Project
Every year, we export many cassava dryer drying machine, and technician can go aboard for guiding install.
Related Products
About us and our service

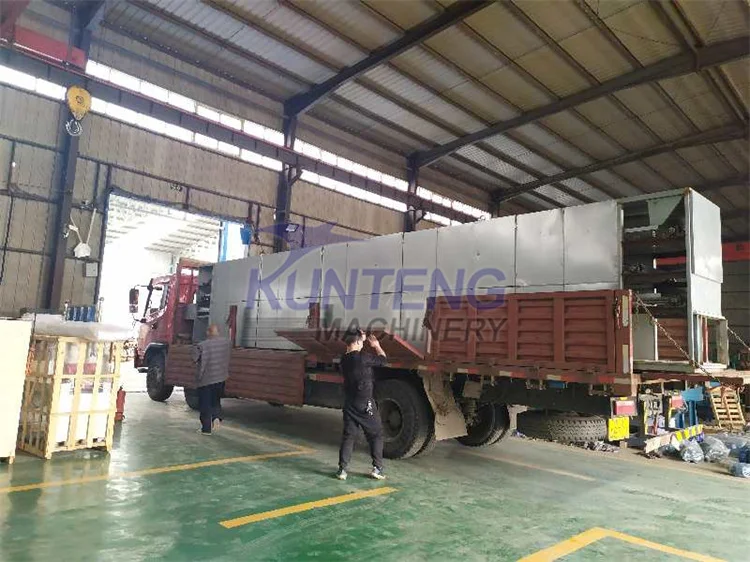

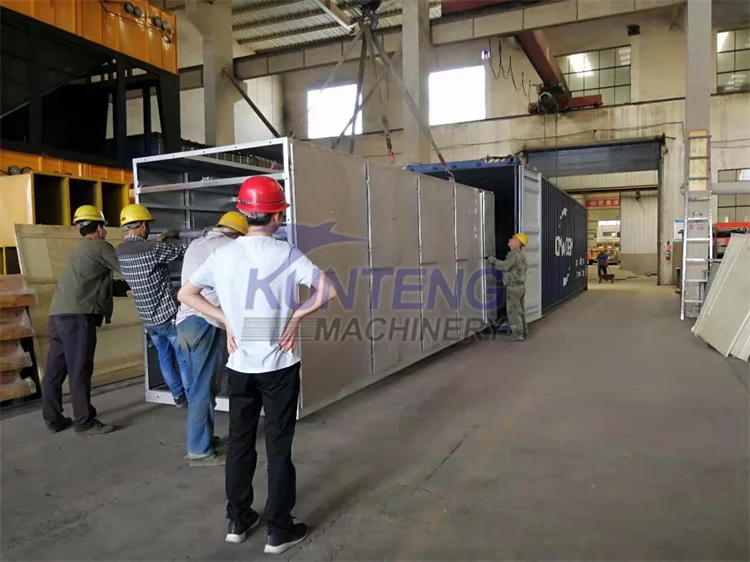

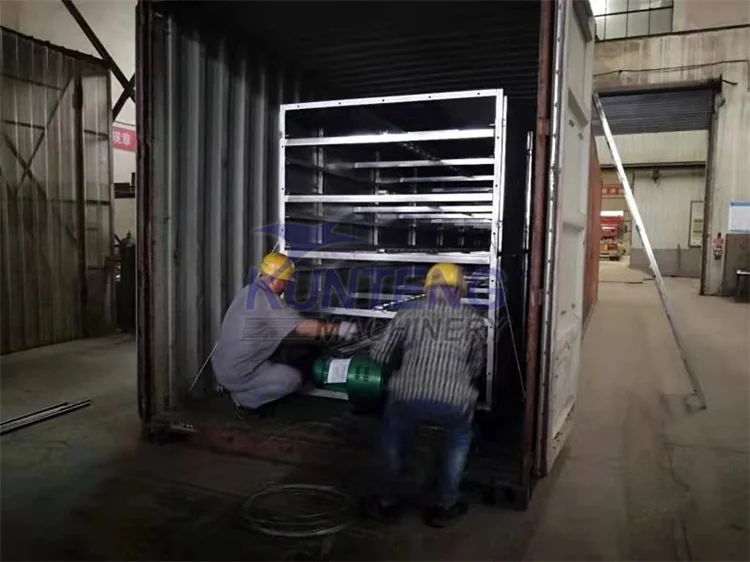

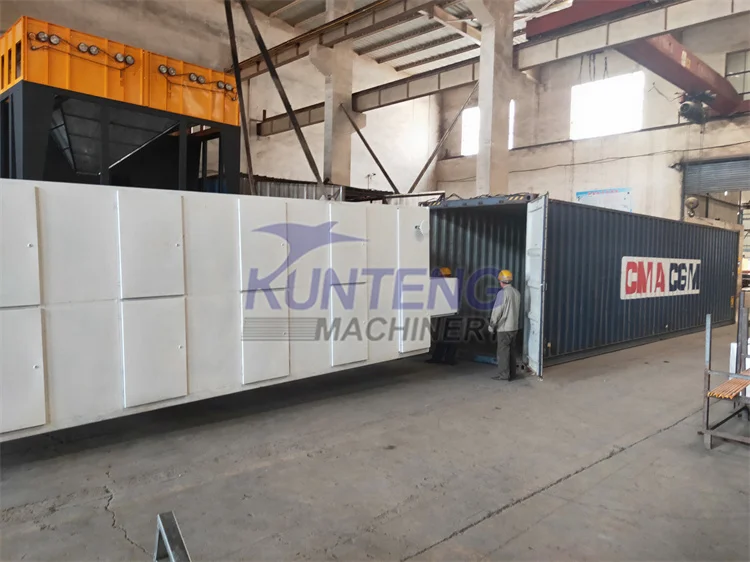

Shipping

SHIPPING:
Normally if single cassava dryer drying machine, will pack by wooden case, use LCL loading, if production line machine loading, will loading into container directly, use FCL loading.

PAYMENT:
30% deposit, balance payoff before delivery.
