Wood Coconut Shell Sawdust Charcoal Briquette Machine Production Line

Name: Wood Coconut Shell Sawdust Charcoal Briquette Machine Production Line
Brand: Henan Kunteng Machinery Manufacturing Co., Ltd

Price 1699168.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Wood Coconut Shell Sawdust Charcoal Briquette Machine Production Line Specification

Product Type
Hydraulic forming machine

General Use
Industrial

Material
Charcoal

Production Capacity
1-3 T/hr

Product Shape
Customized

Weight (kg)
2000 Kilograms (kg)

Type
Briquette Press Machine

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Cooling System
Air Cooling System

Voltage
380V or customized Volt (v)

Motor
AC Motor

Briquette Size
customized

Dimension (L*W*H)
2500*720*2200 Millimeter (mm)

Feature
Low Consumption

Color
Other

Warranty
1 Year

Wood Coconut Shell Sawdust Charcoal Briquette Machine Production Line Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Paypal, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
10 Units Per Month

Delivery Time
10 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
container

Main Export Market(s)
Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia

Main Domestic Market
All India

Certifications
CE,ISO,CCC

About Wood Coconut Shell Sawdust Charcoal Briquette Machine Production Line

PRODUCT OVERVIEW

Stainless hydraulic press charcoal briquetting machine Philippines coal briquetting machine cube charcoal briquette machine

Introduction of coal briquetting machine

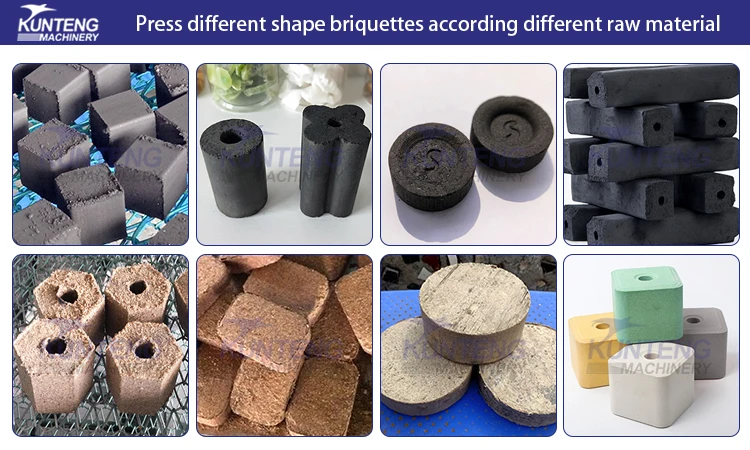

There are many useless material in the world, like coconut shell, waste wood, fruit wood, hard wood, palm shell, nut shell, etc, these material all can become charcoal through carbonizing, then through some processing like crush, mix, then forming charcoal powder into different shapes and sizes of briquette, final product like cube shape, tablet shape, hexagonal, cylinder, or other customized shape, use for different field, like shisha hookah fuel, BBQ charcoal fuel, or other boiler fuel, etc. Then help people to earn more profits.

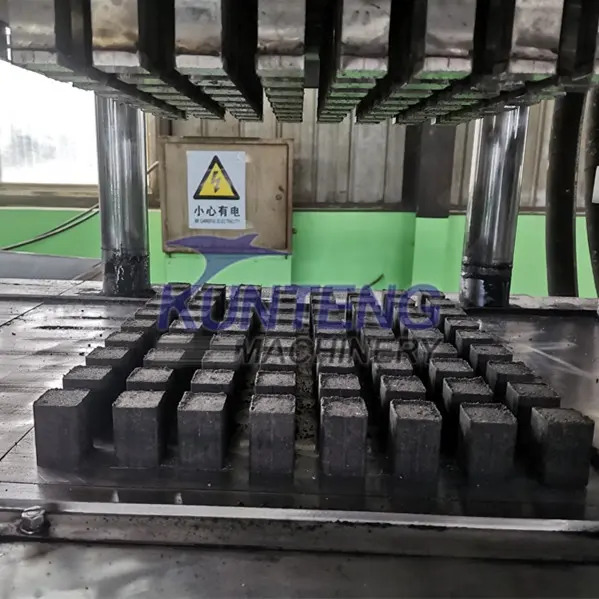

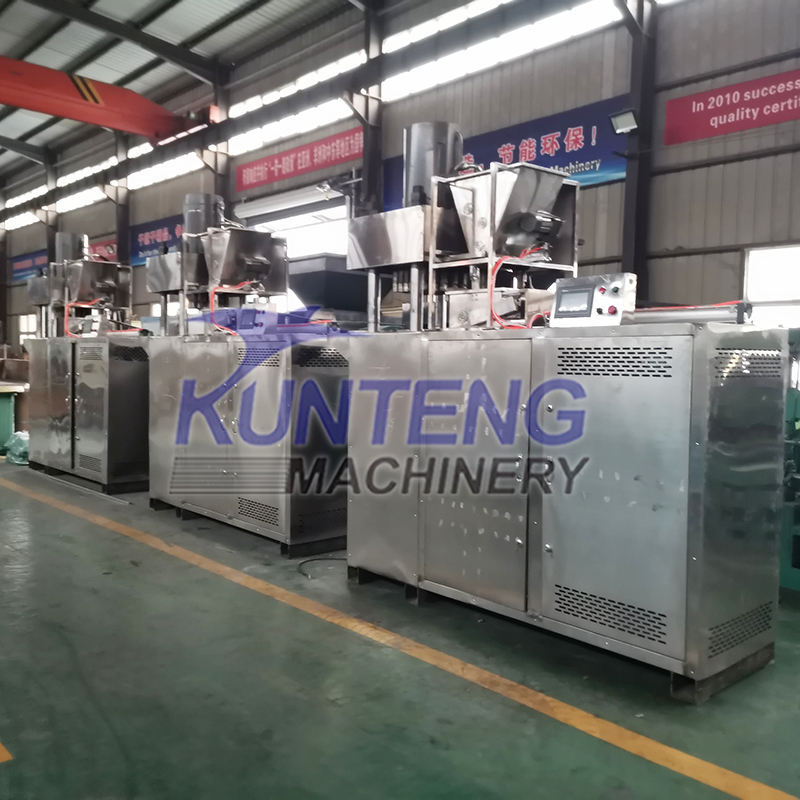

This machine is briquetting machine, forming powder into different shapes and sizes.

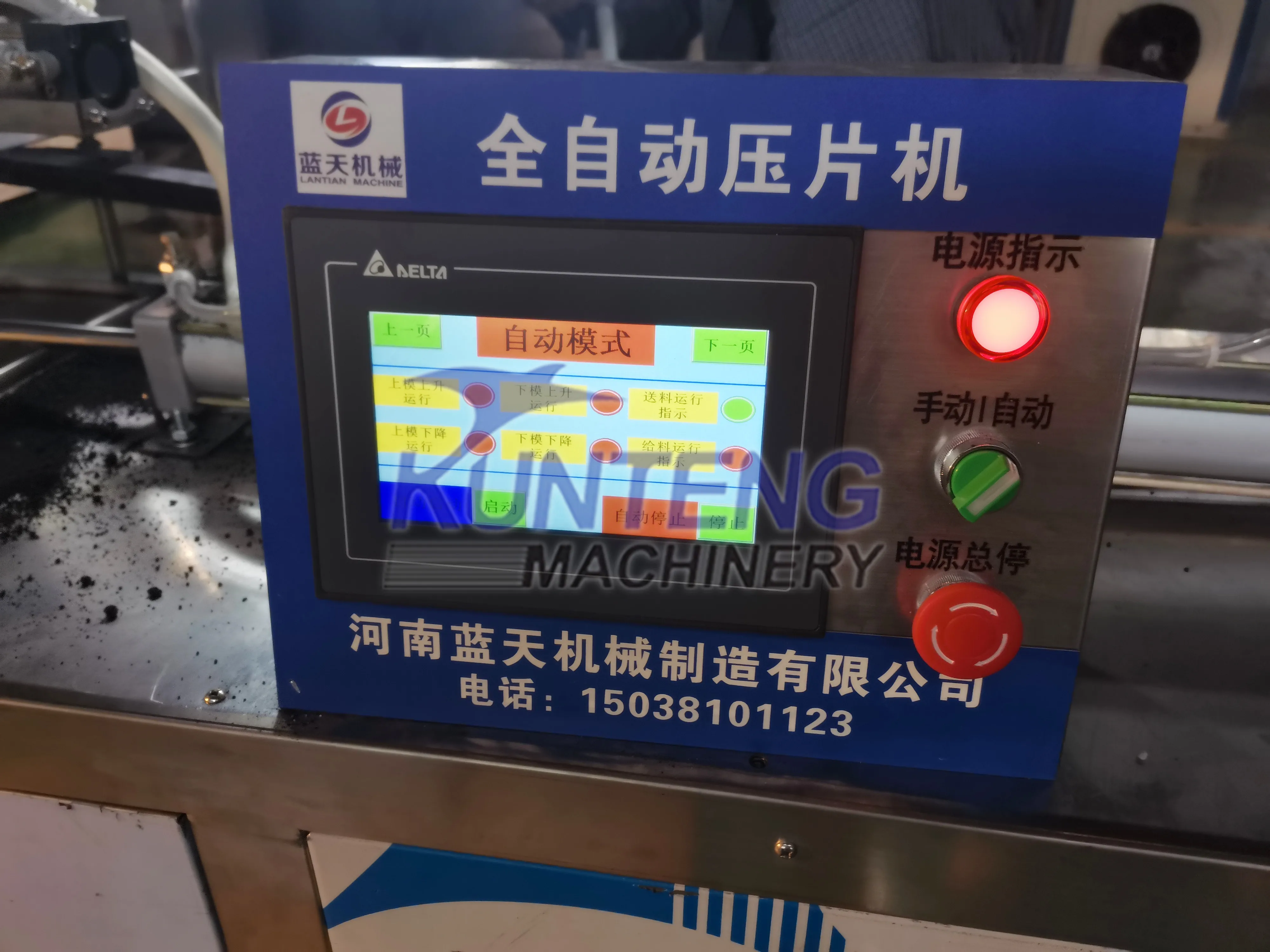

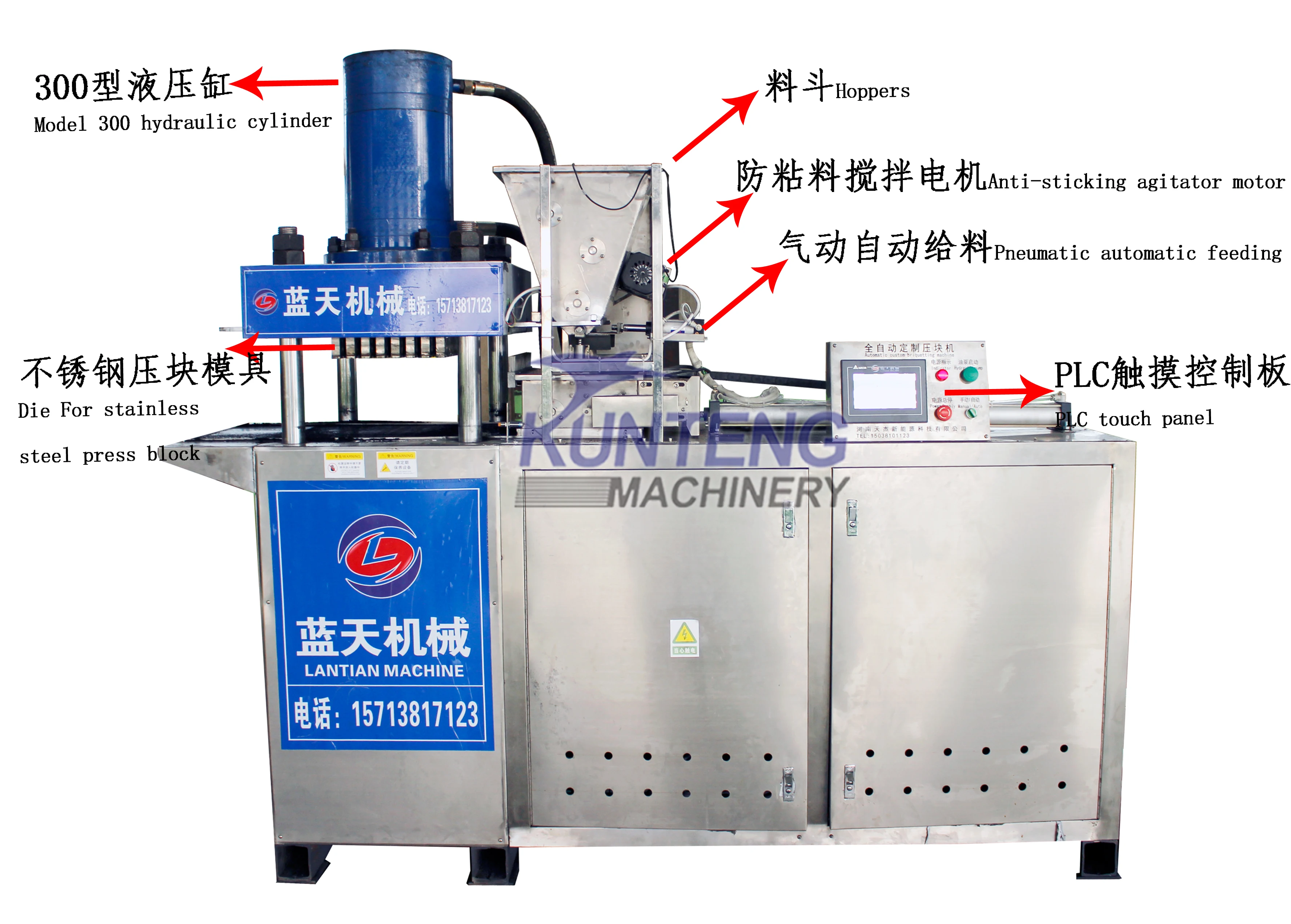

Total machine will be control by this PLC screen, it can control machine work auto or manual,

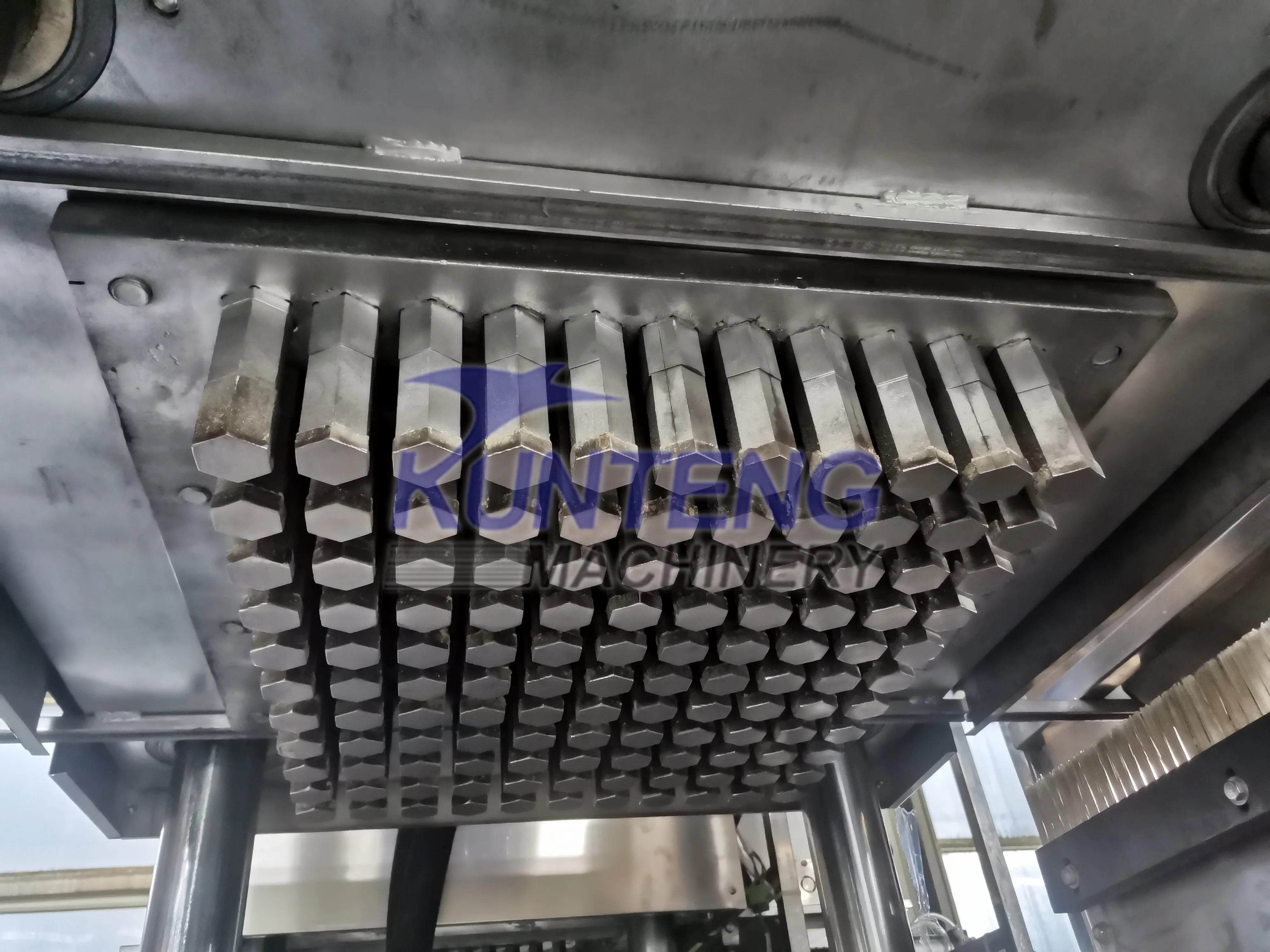

This is mold, also use stainless steel made

Teach formula

How to make easy burning fast burning briquette, smokeless charcoal, white ash after burning briquette.

PRODUCT SPECIFICATIONS

Model	JYP-300(Hydraulic pressure)	JYP-500(hydraulic pressure)
Materials	charcoal powders, coal powders, sawdust, any powders form Materials
Capacity	800-1000kg/h, depends on your materials and size of briquette	1000-1500kg/h, depends on your materials and size of briquette
Motor	15 kw	15kw
Height of briquettes	within 30 mm, diameter as your willing	less than 10 mm
Feeding materials	< 3 mm	< 3 mm
Briquettes shape	cube, round tablet or as customers request	cylinder, hexagonal or as customers request
Pressure	300 tons	500 tons
Overall size	25007202200 mm	26408002700 mm
Weight	2000 KG	3000 KG

DETAILS DISPLAY

Advantage of coal briquetting machine

1. PLC control machine work auto or manual.

2. This kind charcoal briquetting machine Philippines mold plate is bigger than old press machine, so capacity is bigger than old type.

3. Total charcoal briquetting machine Philippines we use stainless steel made, include mold, featuring wear resistance and corrosion resistance.

4. Easy for clean, after one day finish working, can use water to clean, no problem.

5. This pressure is bigger than old type, so final product density will be high, long burning time.

6. There is a mixing shaft inside the feed hopper to prevent difficult blanking.

7. Mold shape can be customized, also can make logo on it.

8. No need install, when receive machine, connect electric is ok.

Suitable material for charcoal briquetting machine Philippines

Machine suitable for many material, like ready charcoal, coke, coal, mineral powder, and other kind material like coconut shell, nut shell, wood, sawdust, bamboo, these kind material need make carbonizing first and make become charcoal, then can through more processing and make briquette.

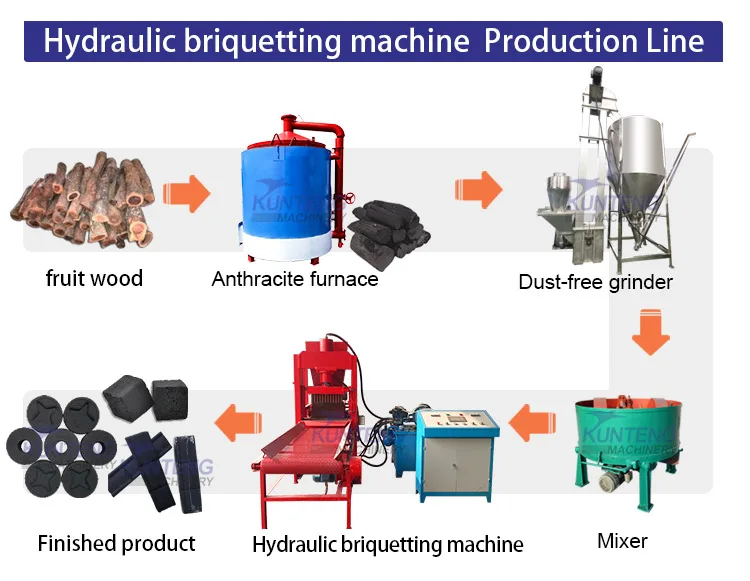

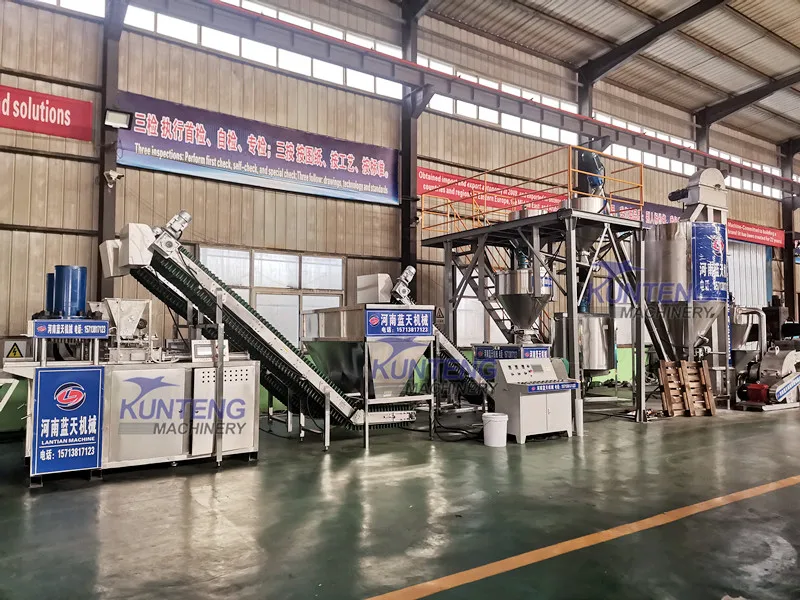

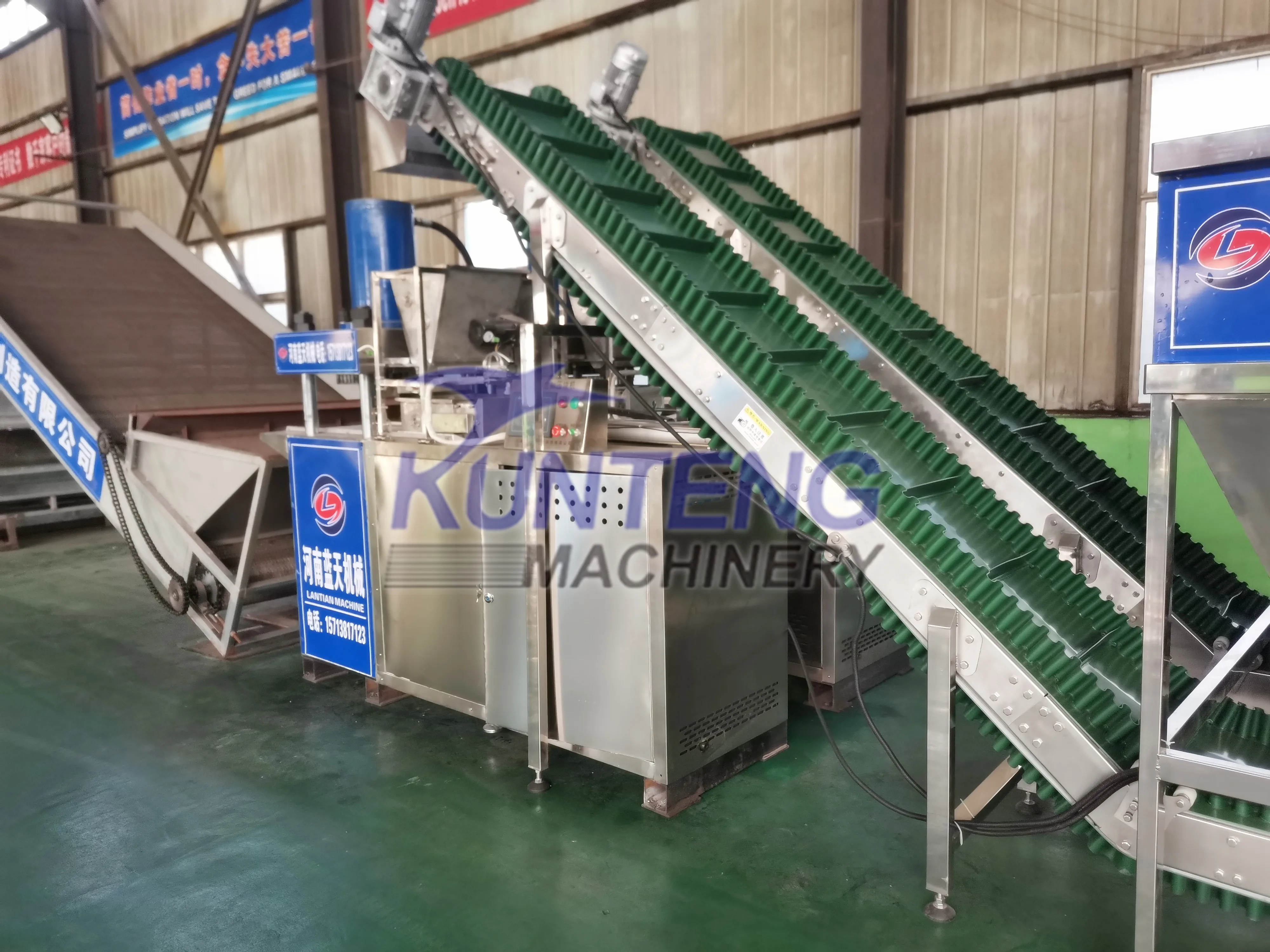

PRODUCTION LINE

Different customer needs is different, because it have different material, different capacity, different shape need make, so now i explain roughly production line for you, exact production line is according to your requirement make.

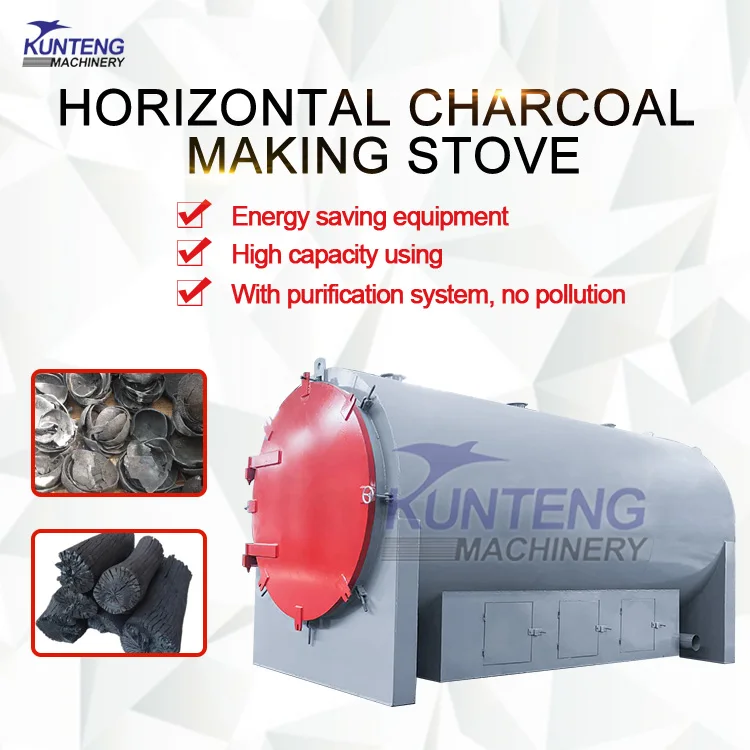

1. Make your material become charcoal by carbonizing furnace. (if is ready charcoal, will no need carbonizing)

2. Crush big size charcoal into powder less than 2 mm.

3. Owing to charcoal powder have no stickiness, so need add some binder into it and mix.

4. After mixed material will going into charcoal briquetting machine Philippines and forming into different shapes and sizes.

5. The last step is make briquette dry, can use our dryer machine, also can use sunshine to dry.
